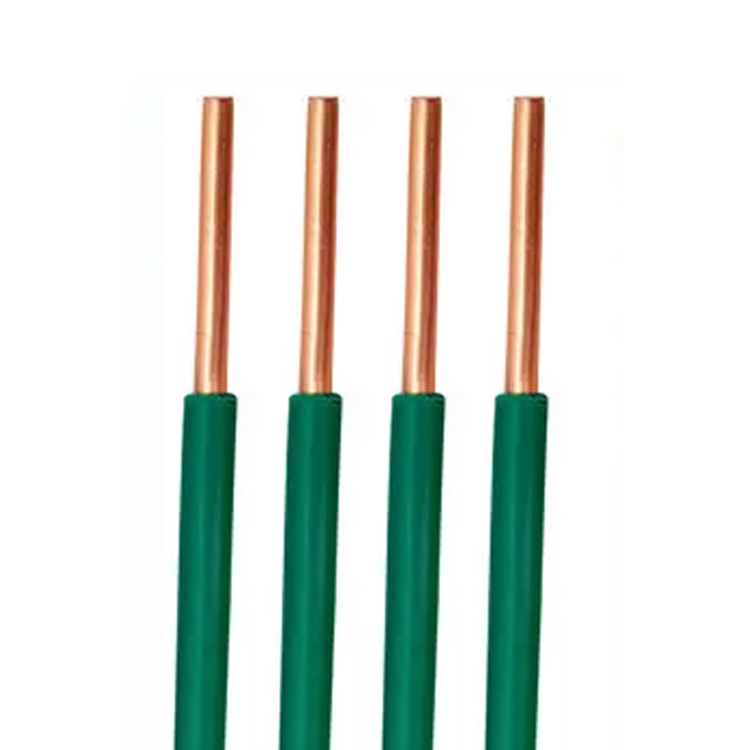

H07V-R / Cable H07V-U

APPLICATION

Cable H07V-R/H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal.

wiring of appliances.

CHARACTERISTICS

Voltage Rating Uo/U

450/750V

Temperature Rating

-15°C to +70°C

Minimum Bending Radius

Up to 10mm²: 3 x overall diameter

10mm² to 25mm²: 4 x overall diameter

Above 25mm²: 5 x overall diameter

STANDARDS

EN 50525-2-31

Flame Retardant according to IEC/EN 60332-1-2

CONSTRUCTION

Director

Class 2 stranded copper conductor

Aislamiento

PVC (Polyvinyl Chloride)

Insulation Colour

Red, Black, Blue, Yellow, White, Green/Yellow, Grey, Brown.

Note

5mm² to 10mm² also available as H07V-U Class 1 solid copper conductor



NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION milímetro	NOMINAL OVERALL DIAMETER milímetro	NOMINAL WEIGHT kg/km
1.5	0.7	2.9	22
2.5	0.8	3.6	32
4	0.8	4.1	50
6	0.8	4.7	71
10	1	5.9	110
16	1	6.8	164
25	1.2	8.4	256
35	1.2	9.4	346
50	1.4	11	473
70	1.4	12.7	674
95	1.6	14.7	913
120	1.6	16.2	1150
150	1.8	18	1416
185	2	20	1749
240	2.2	23	2317
300	2.4	25.2	3049
400	2.6	28.4	3657
500	2.8	31.8	4700
630	2.8	38.1	5890
