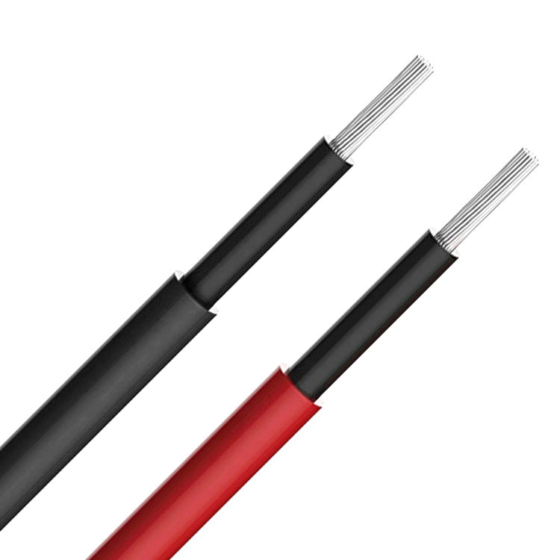

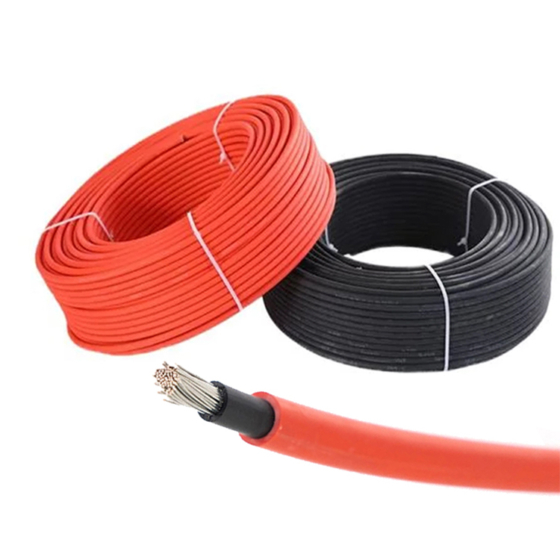

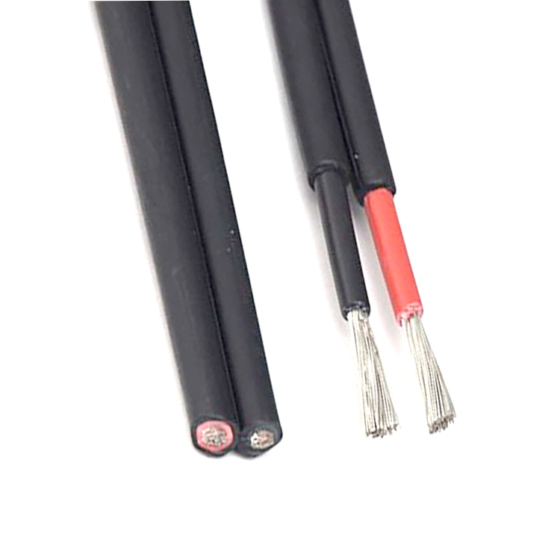

Solar Cable

Solar cables applies to low smoke halogen-free, single-core power cables with cross linked insulation and sheath. These solar cables are in particular for use at the direct current (DC) side of photovoltaic systems, with a nominal DC voltage of 1.5kV between conductors and between conductor and earth. They are suitable to be used with Class II equipment.

Solar cables are applied to flexible single-core cables (cords) for use in the photovoltaic system DC side with a maximum permitted DC voltage of DC 1.8kV. These cables have safety levels equivalent to class II.

Insulation Material: Xlpe

Application: PV Solar Cable

Conductor Material: Tinned Copper

Jacket: PVC

Place of Origin: China

Brand Name: YUNI

Model Number: PV Solar Cable

Type: High Voltage

Size: PV1-F 1*1.5

Color: red/black

Application: PV Solar Cable

Voltage: High Voltage Power Cable

Rated Voltage: DC: 1.8kV; AC(U0/U): 0.6/1kV

Size: PV1-F 1*1.5

Nominal cross-sectio:n 1.5mm²

Number of core:s 1-core

Number of shares: 30/0.25

Core: Tinned Copper

Quantity (meters): 1 – 5000 > 5000

Lead time (days): 15 To be negotiated
