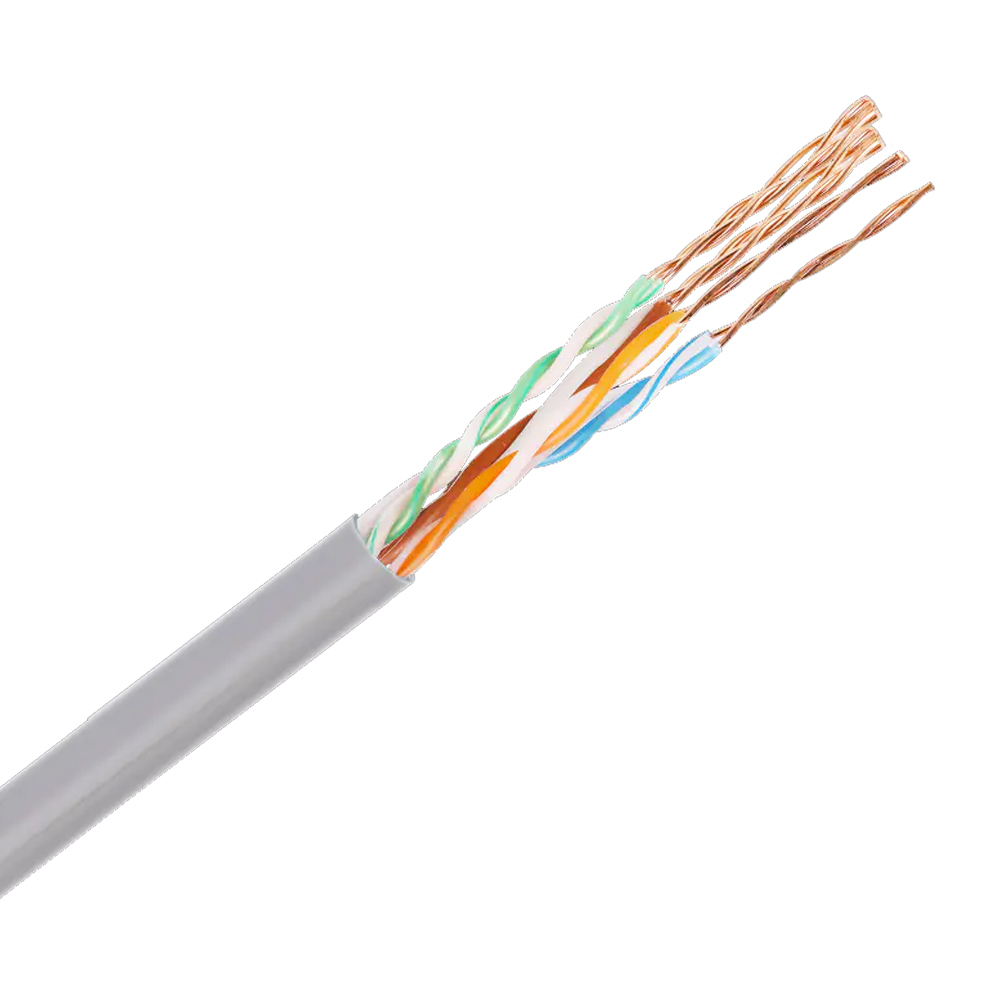

Item Unit Spec. Value Conductor Wire No. — 4P Material — Solid Bare Copper Construction No./mm 0.57±0.02 Insulation Material — PE Diameter mm 1.02±0.05 Color — 1.Blue&White Blue 2.Orange&White Orange 3.Green&White Green 4.Brown&White Brown Seperator Material — PE Rip Cord Material — Nylon Jacket Material — PVC Color — Assorted upon request Thickness mm 0.55±0.1 Diameter mm 6.2±0.5
Mechaniacl Specification：
Conductor Elongation ≥10％ Insulation Tensile Strength ≥16Mpa Insulation Elongation ≥300％ Jacket Tensile Strength ≥13.8Mpa Jacket Elongation ≥100％
Electrical Specifications:
Impedance 100±15Ω（1-100MHz） 100±22Ω（100-250MHz） Conductor Resistance @20°C Max.9.38Ω/100m DC Resistance Unbalance Max.5％ Insulation Resistance Min. 5000 MΩ*Km Delay Skew Max.45ns/100m
HIGH FREQUENCY ELECTRICAL PERFORMANCE:(at 20℃ 100m）
Frequency（MHz） ATT (≤dB) NEXT (≥dB) PSNEXT (≥dB) ELFEXT (≥dB) PS ELFEXT (≥dB) RL (≥dB) Spread out 100m cable and test it 1.00 2.0 74.3 72.3 67.8 64.8 20.0 4.00 3.8 65.3 63.3 55.8 52.8 23.0 8.00 5.3 60.8 58.8 49.7 46.7 24.5 10.00 6.0 59.3 57.3 47.8 44.8 25.0 16.00 7.6 56.2 54.2 43.7 40.7 25.0 20.00 8.5 54.8 52.8 41.8 38.8 25.0 25.00 9.5 53.3 51.3 39.8 36.8 24.3 31.25 10.7 51.9 49.9 37.9 34.9 23.6 62.50 15.4 47.4 45.4 31.9 28.9 21.5 100.00 19.8 44.3 42.3 27.8 24.8 20.1 200.00 29.0 39.8 37.8 21.8 18.8 18.0 250.00 32.8 38.3 36.3 19.8 16.8 17.3
