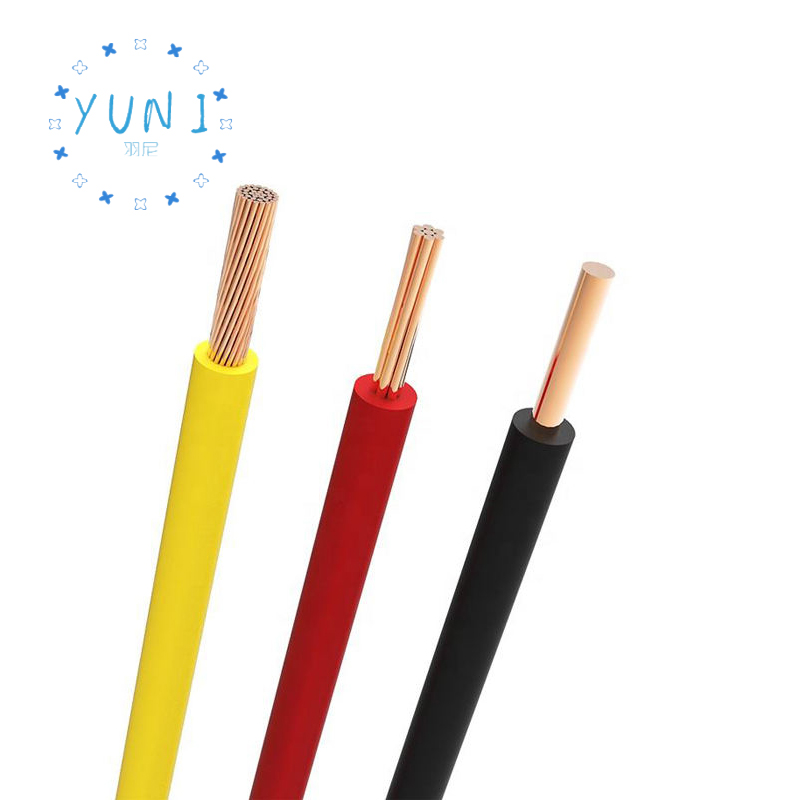

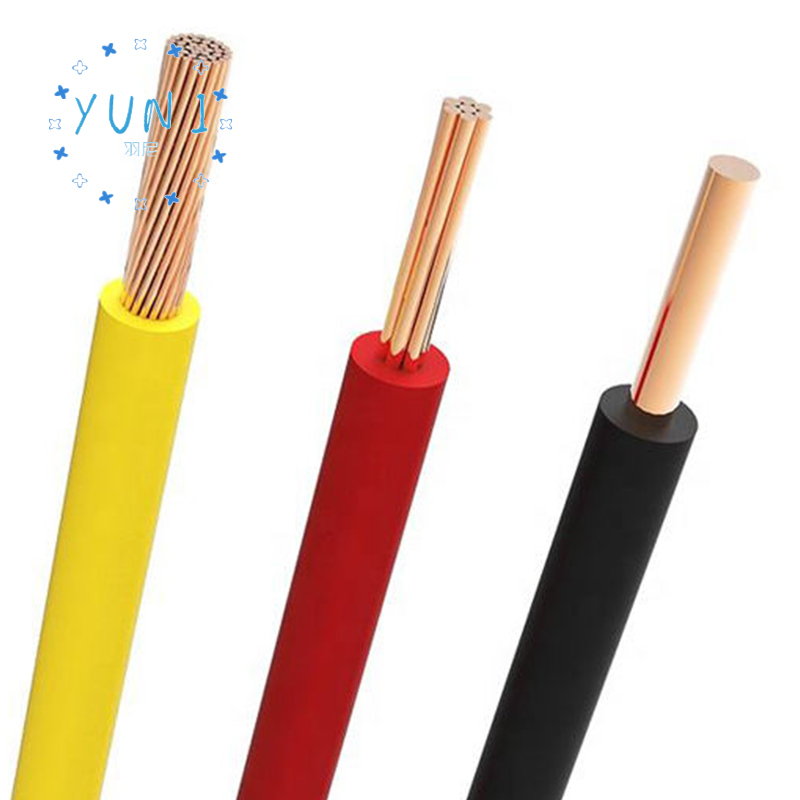

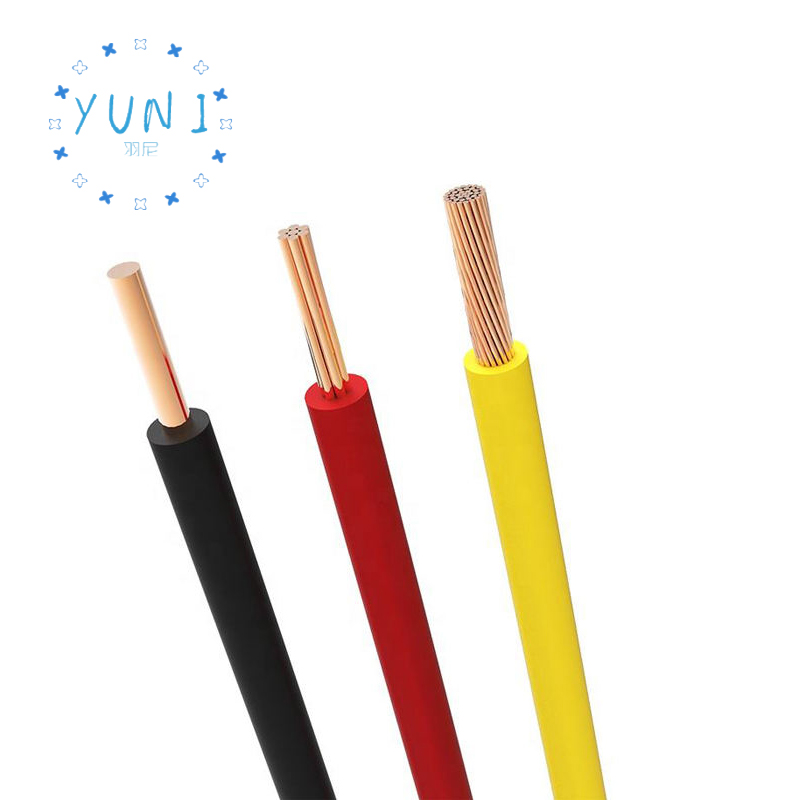

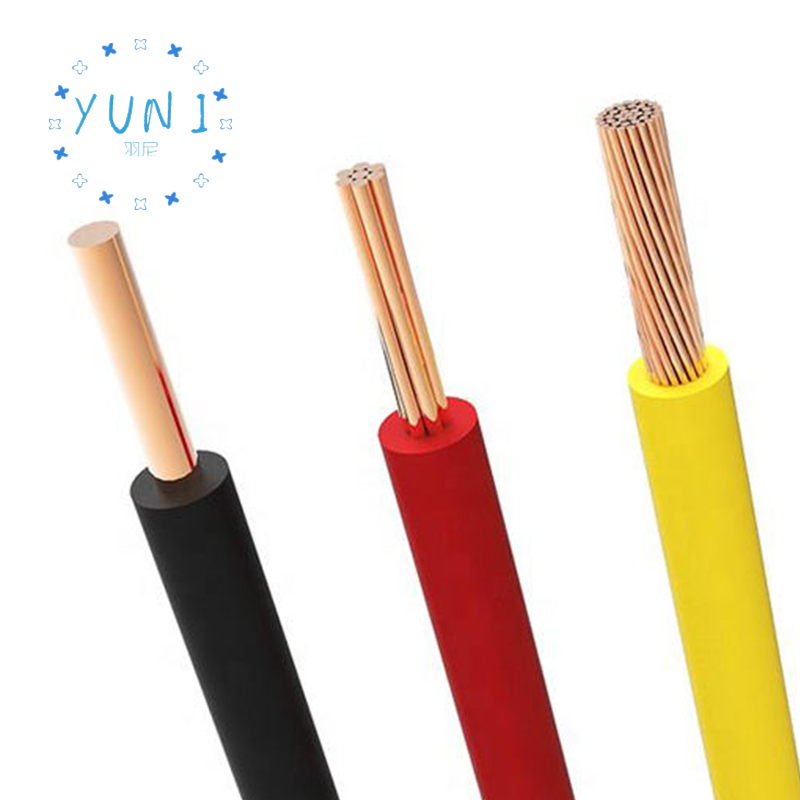

flexible stranded PE Wire 10AWG 12AWG 16AWG 20AWG 22AWG UL3386 UL3385 Conductor Style

KVV Sheathed Control Cable
Laying indoors, cable trench, pipeline and other fixed places. Signaling control, monitoring and protection

circuit lines, electrical instruments,

power distribution unit, controlling the use and measurement. (Such as measurement test, signal display,

self-test telemetry, computer networking,

alarm and other signal transmission control systems)

KVVR Control Cable
Laying need to bend to move inside room, ducts, pipes and the like. Signaling control, monitoring and protection

circuit lines, electrical instruments,

power distribution unit, controlling the use and measurement. (Such as measurement test, signal display, self-test

telemetry, computer networking,

alarm and other signal transmission control systems).

KVVP Braided Shielded Control Cable
Laying indoors, ducts, pipes, and other fixed shield case requires. Signaling control, monitoring and protection

circuit lines, electrical instruments, power distribution unit, controlling the use and measurement. (E.g.,

measurement test, signal display, telemetry self test, network computer, alarm and other control systems

transmitting signals).

^Construction
Standard	KVV(KVVP): Complies with GB/T3956 Type 1 and Type 2 Stranded Conductor KVVR: Complies with GB/T3956 No. 5 stranded conductor
Insulation	KVV: PVC/A type PVC insulation of rigid structure cable for fixed laying KVVP: Hard structure cable PVC/A type PVC insulation for fixed laying KVVR: PVC/D type polyvinyl chloride insulation for flexible structure cables in mobile occasions
Core Structure	Allows to fill the gap between the core wires, optional, and the cable is wrapped with an isolation layer (PP tape or non-woven wrap is optional)
Jacket	KVV(KVVP): hard structure PVC sheathed cable for fixed laying, PVC/ST1 polyvinyl chloride. KVVR: PVC/ST5 polyvinyl chloride sheath
Screen	KVVP: braided round copper wire or tinned round copper wire
Technical data
Rated voltage	U0/U 450/750V
Test voltage	Insulation thickness ≤ 0.6mm: 2000V, Insulation thickness ≥ 0.6mm: 2500V External test: 3000V
Minimum bending radius	KVV Fixed installation: 6×D (outer diameter of cable) Mobile installation: 12×D (outer diameter of cable) KVVR Fixed laying: 12xD (outer diameter of cable) Mobile installation: 6XD (outer diameter of the cable) KVVP Fixed laying: 12×D (outer diameter of cable)
Operating temperature	Fixed laying: -10℃ to +70℃ Mobile installation: -5°C to +70°C
Radiation resistance	Radiation resistance 8×107cJ/kg
Flame retardancy	Pass GB/T18380 flame retardant test
