H01N2-D Welding Cable

APPLICATION

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.

For use on handheld electrode holder up to 100 V

Can be used in dry or damp rooms

For transmitting high currents from the electric welding device to the welding tool

CHARACTERISTICS

Voltage Rating

100V

Temperature Rating

Fixed: -40°C to +85°C

Flexed: -20°C to +85°C

Minimum Bending Radius

Flexed: 6 x overall diameter

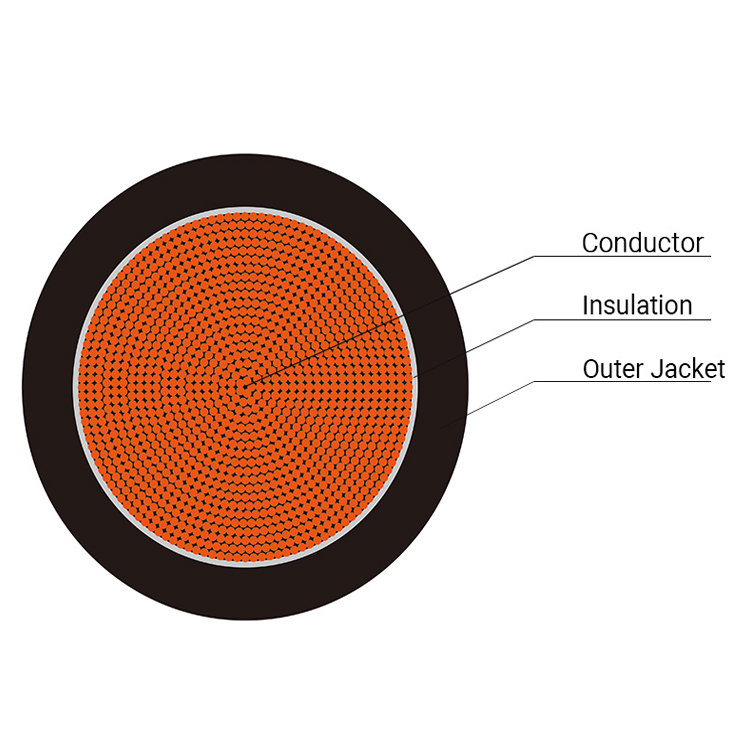

CONSTRUCTION

Conductor

Generally to Class 6 flexible copper conductor

Separator

PET (Polyester Tape)

Sheath

Rubber compound

STANDARDS

EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6,

BS 638 Part 4

Flame Retardant according to IEC/EN 60332-1-2



NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	10	2	9	146
1	16	2	10	204
1	25	2	11.5	290
1	35	2	12.5	384
1	50	2.2	14.5	535
1	70	2.4	16.5	716
1	95	2.6	18.5	943
1	120	2.8	20.5	1235
1	150	3	23	1556
