H05RR-F Cable

APPLICATION

H05RR-F rubber cables use a standard grade rubber compound for the cable outer sheath and are suitable for light duty applications.

Used extensively for trailing and flexible supply leads, these H05RR-F rubber cables remain flexible even at sub-zero temperatures.

Flexible cable of 2 to 5 cores for the power supply of mobile or semi-mobile appliances submitted to low mechanical stress (household electricals-portable tooling…). Especially suitable for the stripping force on automatic machines

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

Rubber compound

Outer Sheath

Rubber compound

Core Identification

2 core: Blue Brown

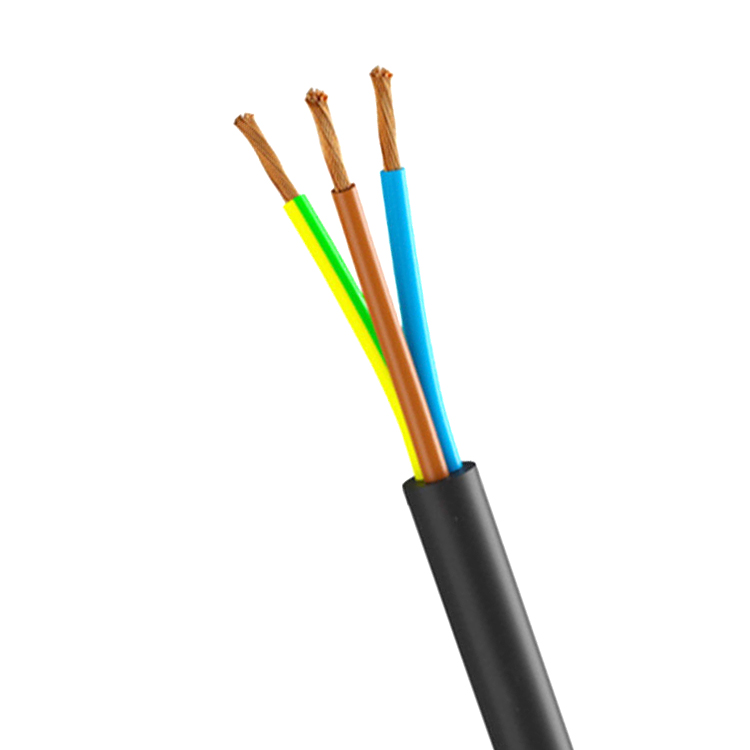

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

Sheath Colour

White Black

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Max. conductor temperature in service

60 °C

Temperature Rating

Fixed: -25ºC to +60ºC

Minimum Bending Radius

Flexed: 4 x overall diameter

Fixed: 3 x overall diameter

Cable flexibility

Flexible

Chemical resistance

Accidental

Smoke density

IEC 61034

Minimum bending radius

7.5x Outer-Ø

STANDARDS

EN 50525-2-21, EN 60228

Flame Retardant according to IEC/EN 60332-1-2



NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	WEIGHT kg/km
2	0.75	0.6	6.1	61
2	1	0.6	6.6	73
2	1.5	0.8	7.8	115
2	2.5	0.9	9.2	160
2	4	1	10.8	–
3	0.75	0.6	6.6	75
3	1	0.6	7	86
3	1.5	0.8	8.4	135
3	2.5	0.9	9.9	190
3	4	1	11.7	–
3	6	1	13.3	–
4	0.75	0.6	7.3	–
4	1	0.6	7.6	105
4	1.5	0.8	9.4	165
4	2.5	0.9	11.1	235
4	4	1	13.0	–
4	6	1	14.5	–
5	0.75	0.6	8.1	–
5	1	0.6	8.4	–
5	1.5	0.8	10.3	190
5	2.5	0.9	12.4	285
5	4	1	14.5	–
