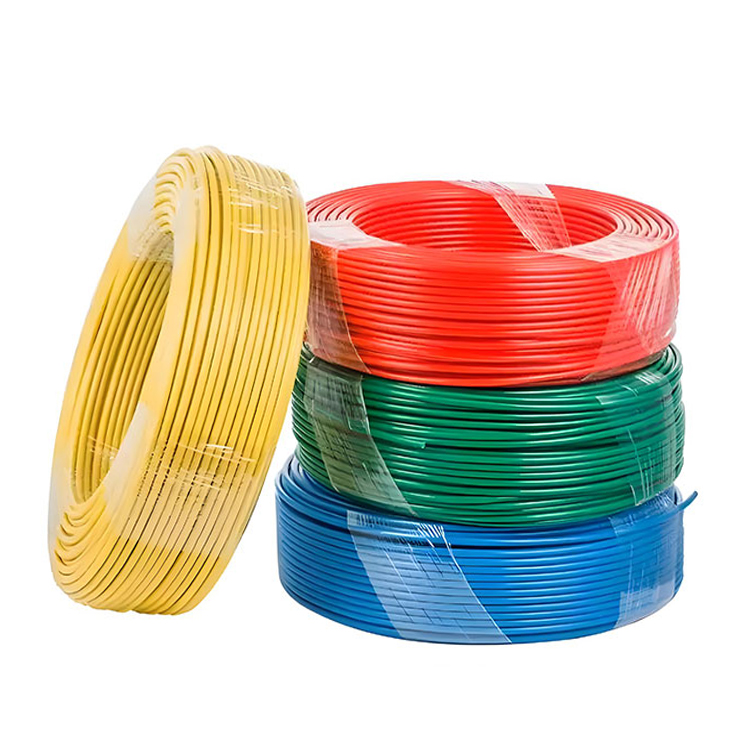

H05V-K / H07V-K Flexible Cable

APPLICATION

PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

CHARACTERISTICS

Voltage Rating Uo/U

H05V-K: 300/500V

H07V-K: 450/750V

Temperature Rating

Fixed: -30°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

STANDARDS

EN 50525-2-31, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

PVC (Polyvinyl Chloride)

Insulation Colour

Red, Black, Blue, Orange, Yellow, White, Green/Yellow, Grey, Brown, Violet, Pink.

H05V-K	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
	0.5	2.2	9.1
	0.75	2.4	11.7
	1	2.55	14.4

H07V-K	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
	1.5	3.00	20.1
	2.5	3.65	31.5
	4	4.2	46.2
	6	4.8	65.1
	10	6.25	109.4
	16	7.4	165.2
	25	9.4	253.4
	35	10.4	345.5
	50	12.55	492.4
	70	14.10	669.3
	95	17.20	910.4
	120	17.70	1129.4
	150	19.60	1401.0
	185	23.00	1741.0
	240	26.40	2267.5
