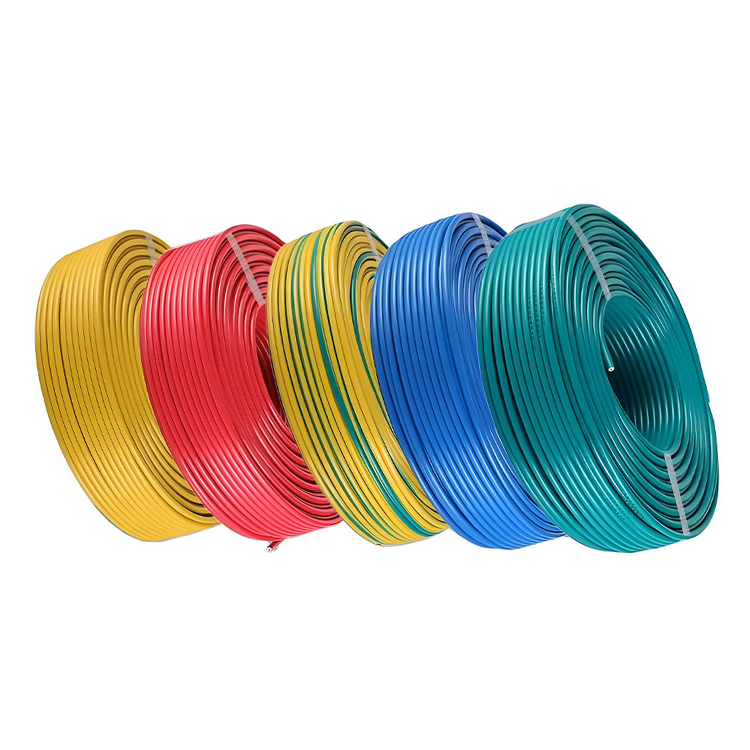

H05Z-K / H07Z-K LSZH Cable

APPLICATION

LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

CHARACTERISTICS

Voltage Rating Uo/U

H05Z-K – 0.5mm² to 1mm²: 300/500V

H07Z-K – 1.5mm² to 240mm²: 450/750V

Temperature Rating

-25°C to +90°C

Minimum Bending Radius

Up to 35mm2: 4 x overall diameter

50mm2 and above: 6 x overall diameter

STANDARDS

EN 50525-3-41, EN 60228,

Flame Retardant according to IEC/EN 60332-1-2,

IEC/EN 60332-3-24

Halogen Free according to IEC/EN 61034-1/2,

IEC/EN 60754-1/2

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red, Black, Blue, Orange, White, Yellow, Green/Yellow, Grey, Brown, Violet, Pink.



NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm		MINIMUM RESISTANCE OF INSULATION AT 90°C Mohms/km	NOMINAL WEIGHT kg/km
		Lower Limit	Upper Limit
0.5	0.6	2.1	2.6	0.015	8.7
0.75	0.6	2.2	2.8	0.011	11.3
1	0.6	2.4	2.9	0.01	13.9
1.5	0.7	2.8	3.5	0.010	19.3
2.5	0.8	3.4	4.3	0.009	30.9
4	0.8	3.9	4.9	0.007	44.9
6	0.8	4.4	5.5	0.006	64.2
10	1	5.7	7.1	0.0056	108.2
16	1	6.7	8.4	0.0046	163.4
25	1.2	8.4	10.6	0.0044	248.1
35	1.2	9.7	12.1	0.0038	340.6
50	1.4	11.5	14.4	0.0037	484.2
70	1.4	13.2	16.6	0.0032	671
95	1.6	15.1	18.8	0.0032	895.8
120	1.6	16.7	20.9	0.0029	1111.1
150	1.8	18.6	23.3	0.0029	1389.2
185	2	20.6	25.8	0.0029	1724.1
240	2.2	23.5	29.4	0.0028	2225.4
