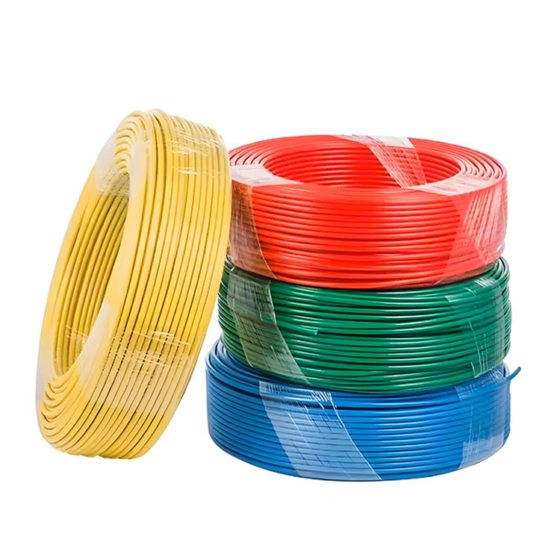

H05Z-U / H07Z-U LSZH Cable

APPLICATION

Single core rubber insulated H05Z and H07Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V or 450/750V.

CHARACTERISTICS

Voltage Rating

H05V-U: 300/500V

H07V-U: 450/750V

Temperature Rating

Maximum conductor operating temperature: 90°C

Maximum conductor short-circuit temperature: 250°C

Minimum installation temperature: 5°C

STANDARDS

EN 50525-1, 50525-3-41, IEC/EN 60228, IEC 60245-2, DIN

VDE 0282-1/9/300, DIN VDE 0295, VDE 0298-4, EN 50395,

EN 50396, HD 22.1/9, HD 308, HD 383, HD 516

Flame Retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2 and IEC/EN

61034-1/2

CONSTRUCTION

Conductor

Class 1 solid Copper

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red, Black, Blue, Orange, White, Yellow, Green/Yellow, Grey, Brown, Violet, Pink.



H05Z-U	NOMINAL CROSS  SECTIONAL AREA mm2	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	NOMINAL CABLE WEIGHT kg/km
	0.5	1.9	2.4	7.1
	0.75	2.1	2.6	9.7
	1	2.2	2.8	12.1

H07Z-U	NOMINAL CROSS  SECTIONAL AREA mm2	MINIMUM OVERALL DIAMETER mm	MAXIMUM OVERALL DIAMETER mm	NOMINAL CABLE WEIGHT kg/km
	1.5	2.6	3.3	18
	2.5	3.2	4	29
	4	3.6	4.6	44
	6	4.1	5.2	62
	10	5.3	6.6	103
