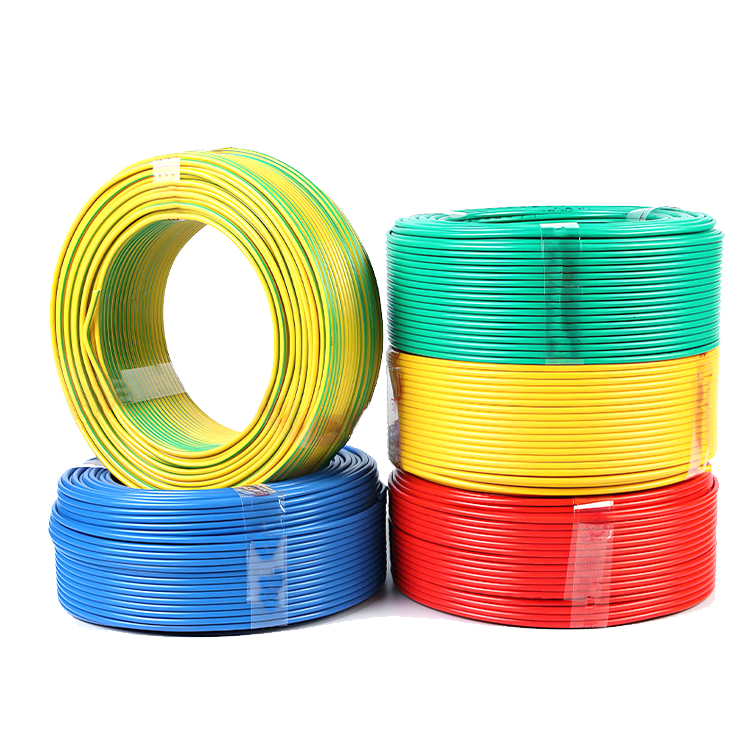

H07Z-R LSZH Cable

APPLICATION

Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

450/750V

Temperature Rating

Fixed: 0°C to +90°C

Minimum Bending Radius

6 x overall diameter

STANDARDS

EN 50525-3-41, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Halogen Free according to IEC/EN 61034-1/2, IEC/EN

60754-1/2

CONSTRUCTION

Conductor

Class 2 stranded copper conductor)

Insulation

LSZH (Low Smoke Zero Halogen)

Insulation Colour

Red, Black, Blue, Yellow, Orange, White, Green/Yellow, Grey, Brown, Violet, Pink.



NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1.5	0.7	3.4	22
2.5	0.8	4.1	35
4	0.8	4.7	50
6	0.8	5.4	72
10	1	6.8	121
16	1	8	182
25	1.2	9.8	285
35	1.2	11	390
50	1.4	13.2	510
70	1.4	15.1	710
95	1.6	17	980
120	1.6	19	1220
150	1.8	21	1500
185	2	23.5	1910
240	2.2	26.5	2490
300	2.4	29.5	3100
400	2.6	33.5	3950
500	2.8	37	5000
630	2.8	41	6350
