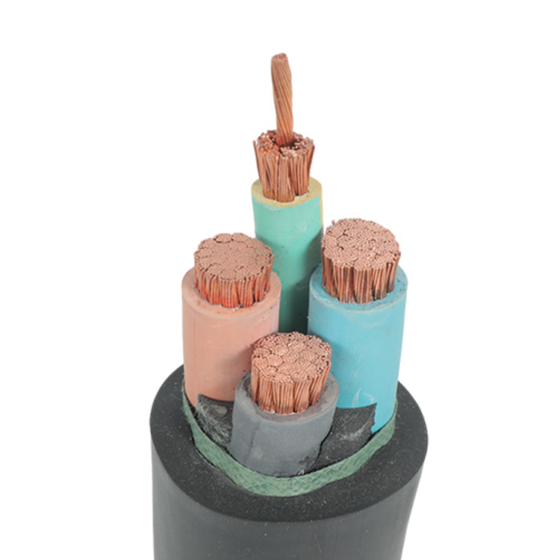

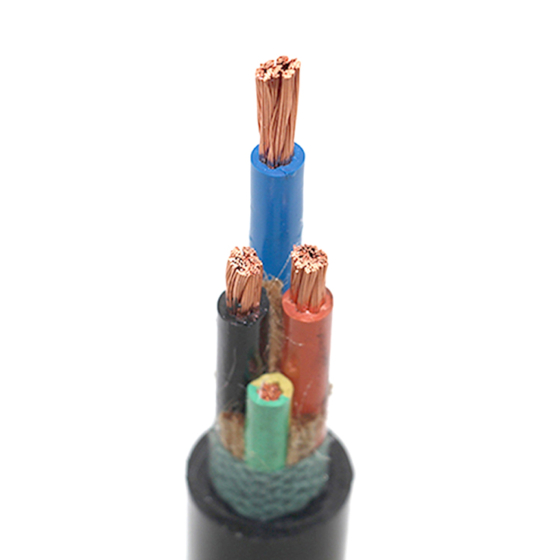

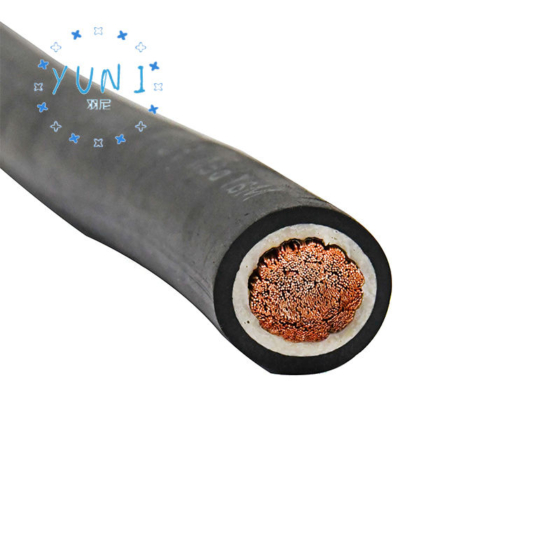

H07ZZ-F LSZH Rubber Cable

Applications

The H07ZZ-F cable is used across a broad range of applications across almost all industry sectors where installations are subjected to medium mechanical stresses such as supplying mobile power units, UPS connection, stage lighting and audio visual equipment. Flame Retardant according to IEC/EN 60332-3-10 and with its Low Smoke Zero Halogen insulation an oversheath, the H07ZZ-F is suitable for installations both indoors and outdoors, in buildings or industrial plants with a high density of people.

CHARACTERISTICS

Voltage Rating Uo/U

450/750V

Temperature Rating

Fixed: -20°C to +90°C

Flexed: -5°C to +50°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter

CONSTRUCTION

Conductor

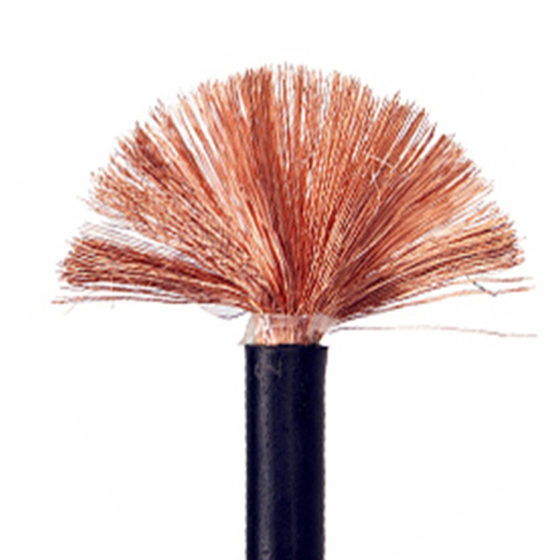

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen) cross-linked compound

Sheath

LSZH (Low Smoke Zero Halogen) cross-linked compound

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers

Green/Yellow

Sheath Colour

Black

STANDARDS

EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228

Flame Retardant according to IEC/EN 60332-3-10

Low smokes/low smoke density in the event of fire according to IEC 61034

Ozone-resistant acc. to EN 50363-6, EN 60811-403, EN 50396-8.1.3

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	AWG, approx.	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1.5	16	6.4	63
1	2.5	14	7.1	76
1	4	12	8.1	107
1	6	10	8.85	140
1	10	8	10.7	213
1	16	6	12.1	291
1	25	4	14.25	415
1	35	2	16.1	539
1	50	1	18.55	740
1	70	2/0	20.95	989
1	95	3/0	23.4	1290
1	120	4/0	25.7	1592
1	150	300 kcmil	28.3	1957
1	185	350 kcmil	31	2350
1	240	500 kcmil	34.45	3099
1	300	600 kcmil	37.7	3687
1	400	750 kcmil	42.1	4850
1	500	1000 kcmil	46.65	5998
2	1	18	8.85	112
2	1.5	16	9.75	135
2	2.5	14	11.65	190
2	4	12	13.45	255
2	6	10	14.95	335
2	10	8	20.15	590
2	16	6	22.95	821
2	25	4	27.5	1172
3	1	18	9.5	125
3	1.5	16	10.55	129
3	2.5	14	12.45	250
3	4	12	14.45	330
3	6	10	16.05	440
3	10	8	21.65	800
3	16	6	24.7	1150
3	25	4	29.55	1680
3	35	2	33.2	2170
4	1	18	10.55	170
4	1.5	16	11.65	196
4	2.5	14	13.8	275
4	4	12	15.95	388
4	6	10	17.85	515
4	10	8	23.7	882
4	16	6	26.95	1234
4	25	4	32.75	1811
4	35	2	36.8	2365
4	50	1	42.6	3212
4	70	2/0	48.35	4320
4	95	3/0	54.7	5572
4	120	4/0	59.5	6930
4	150	300 kcmil	65.5	8419
4	185	350 kcmil	72	10165
4	240	500 kcmil	81.5	13420
5	1	18	11.65	205
5	1.5	16	12.8	242
5	2.5	14	15.15	341
5	4	12	17.75	495
5	6	10	19.85	642
5	10	8	26	1090
5	16	6	29.85	1534
5	25	4	36.2	2291
5	35	2	39.5	2700
5	50	1	44.2	3730
5	70	2/0	50.4	5022
5	95	3/0	56.2	6520
5	120	4/0	64.1	8080
5	150	300 kcmil	70.1	8660
7	1.5	16	16.7	355
12	1.5	16	20	660
19	1.5	16	27.5	788
27	1.5	16	31.5	1077
37	1.5	16	36.5	1358
