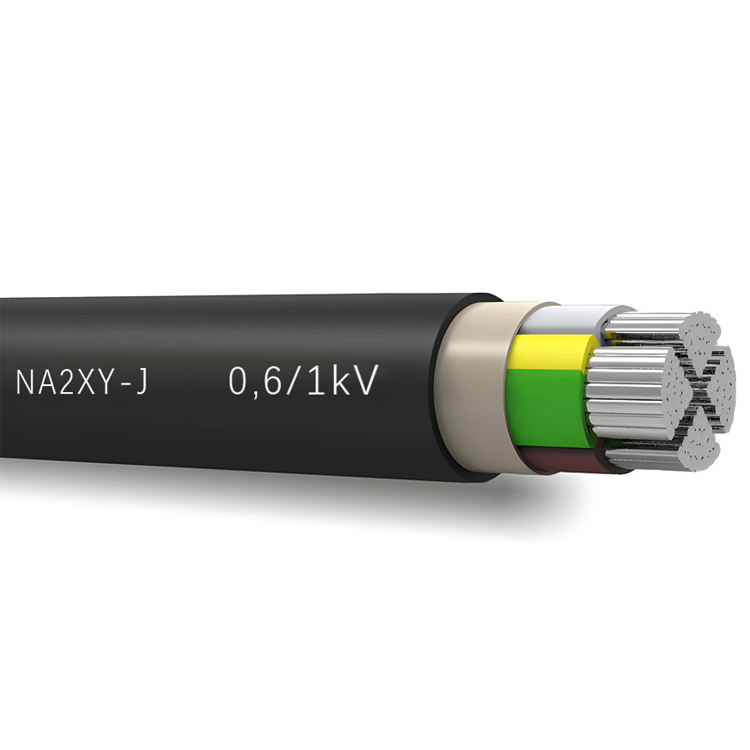

NA2XY Cable Aluminium XLPE PVC – 0.6/1kV

APPLICATION

For fixed installation in buildings, in free air, in ground and in water.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

 0.6/1 (1.2)kV

Nominal Voltage DC (core-earth/core-core)

1.8/1.8kV

Test Voltage

4kV

Temperature Rating

Flexed: 5°C to +70°C

Fixed: -35°C to +70°C

Maximum Short Circuit Temperature

+250°C (max 5 seconds)

Minimum Bend Radius

Single core: 15 x overall diameter

Multi core: 12 x overall diameter

STANDARDS

IEC 60502-1, VDE 0276-603

Flame retardant according to IEC/EN 60332-1-2

CONSTRUCTION

Conductor

Class 2 stranded Aluminium* conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

NA2XY-J: 3 core: Blue Brown Green/Yellow

4 core: Brown Black Grey Green/Yellow

NA2XY-O: 2 core: Blue Brown

3 core: Brown Black Grey

4 core: Brown Black Grey Blue

Sheath Colour

Black



NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
	Phase Conducto	Earth Conductor
1	95	–	1.1	1.5	16.5	390
1	120	–	1.2	1.8	17.7	465
1	150	–	1.4	1.8	20.1	580
1	185	–	1.6	1.8	22.1	715
1	240	–	1.7	1.8	25.0	905
1	300	–	1.8	1.8	27.5	1120
1	400	–	2	1.9	31.4	1440
1	500	–	2.2	2	34.6	1770
1	630	–	2.4	–	37.0	2180
3	70	35	1.1	1.9	33.0	1450
3	95	50	1.1	2.1	37.3	1910
3	120	70	1.2	2.2	41.5	2410
3	150	70	1.4	2.3	49.0	3535
3	185	95	1.6	2.5	51.0	3810
3	240	120	1.7	2.7	58.0	4880
3	300	150	1.8	2.8	64.2	5610
4	16	16	0.9	1.8	22.4	675
4	25	16	0.9	1.8	26.0	910
4	35	16	0.9	1.8	28.7	1120
4	50	25	1	1.8	33.0	1475
4	70	35	1.1	1.9	38.0	1985
4	95	50	1.1	2.1	23.0	2580
4	120	70	1.2	2.2	47.2	3175
4	150	70	1.4	2.3	54.2	4035
4	185	95	1.6	2.5	59.4	4945
4	240	120	1.7	2.7	68.1	6425
4	300	150	1.8	2.8	75.1	7910
