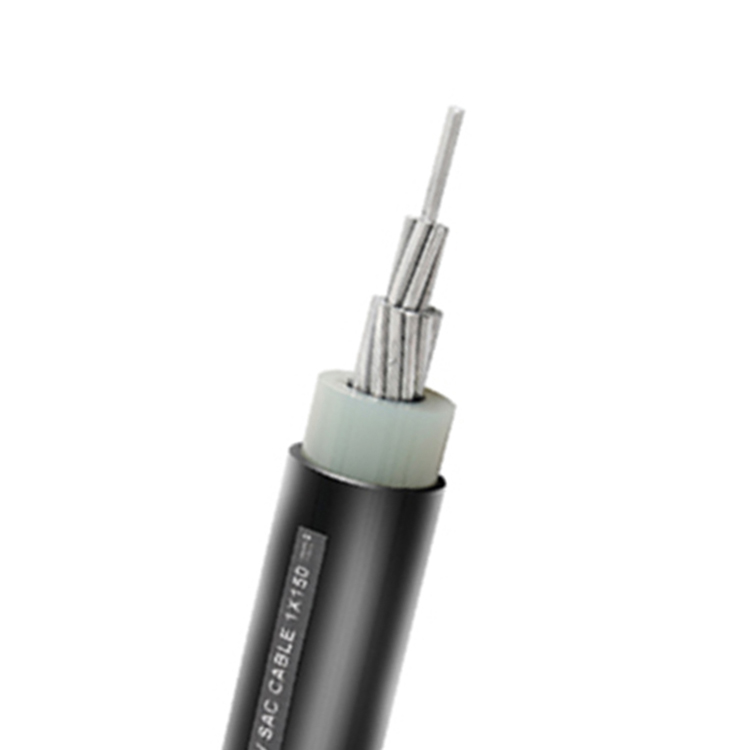

Overhead Power Distribution Lines SPACER CABLE

01-Conductor– Hard drawn aluminum compacted conductor, class 2
02-Conductor Screen– Semi-conductive compound, Optional
03-Inner Insulation- Cross linked polyethylene (XLPE)
04-Outer Sheath- Track resistant Polyethylene compound (HDPE)

Table 1 AL/XLPE/HDPE 15kV ICEA Standard

No. x CSA mm2	Aluminum Conductor		XLPE insulation	HDPE sheath		Approx. weight
No. x CSA mm2	Number of wire	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Approx. diameter mm	kg/km
1*25	7	6	1.91	1.91	15.0	216
1*35	7	7	1.91	1.91	16.0	257
1*50	7	8.2	1.91	1.91	17.2	306
1*70	19	10	1.91	1.91	19.0	390
1*95	19	11.6	1.91	1.91	20.6	482
1*120	19	13	1.91	1.91	22.0	567
1*150	19	14.6	1.91	1.91	23.6	669
1*185	37	16.2	1.91	1.91	25.2	789
1*240	37	18.4	1.91	1.91	27.4	966
1*300	61	20.6	2.03	2.03	30.1	1180
1*400	61	23.8	2.03	2.03	33.3	1474

Table 2 AL/XLPE/HDPE 25kV ICEA Standard

No. x CSA mm2	Aluminum Conductor		XLPE insulation	HDPE sheath		Approx. weight
No. x CSA mm2	Number of wire	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Approx. diameter mm	kg/km
1*25	7	6	3.18	3.18	20.1	355
1*35	7	7	3.18	3.18	21.1	403
1*50	7	8.2	3.18	3.18	22.3	462
1*70	19	10	3.18	3.18	24.1	560
1*95	19	11.6	3.18	3.18	25.7	664
1*120	19	13	3.18	3.18	27.1	761
1*150	19	14.6	3.18	3.18	28.7	874
1*185	37	16.2	3.18	3.18	30.3	1007
1*240	37	18.4	3.18	3.18	32.5	1202
1*300	61	20.6	3.18	3.18	34.7	1410
1*400	61	23.8	3.18	3.18	37.9	1727

Table 3 AL/XLPE/HDPE 35kV ICEA Standard

No. x CSA mm2	Aluminum Conductor		XLPE insulation	HDPE sheath		Approx. weight
No. x CSA mm2	Number of wire	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Approx. diameter mm	kg/km
1*25	7	6	4.45	3.18	22.7	440
1*35	7	7	4.45	3.18	23.7	492
1*50	7	8.2	4.45	3.18	24.9	556
1*70	19	10	4.45	3.18	26.7	661
1*95	19	11.6	4.45	3.18	28.3	771
1*120	19	13	4.45	3.18	29.7	873
1*150	19	14.6	4.45	3.18	31.3	993
1*185	37	16.2	4.45	3.18	32.9	1132
1*240	37	18.4	4.45	3.18	35.1	1335
1*300	61	20.6	4.45	3.18	37.3	1552
1*400	61	23.8	4.45	3.18	40.5	1881
