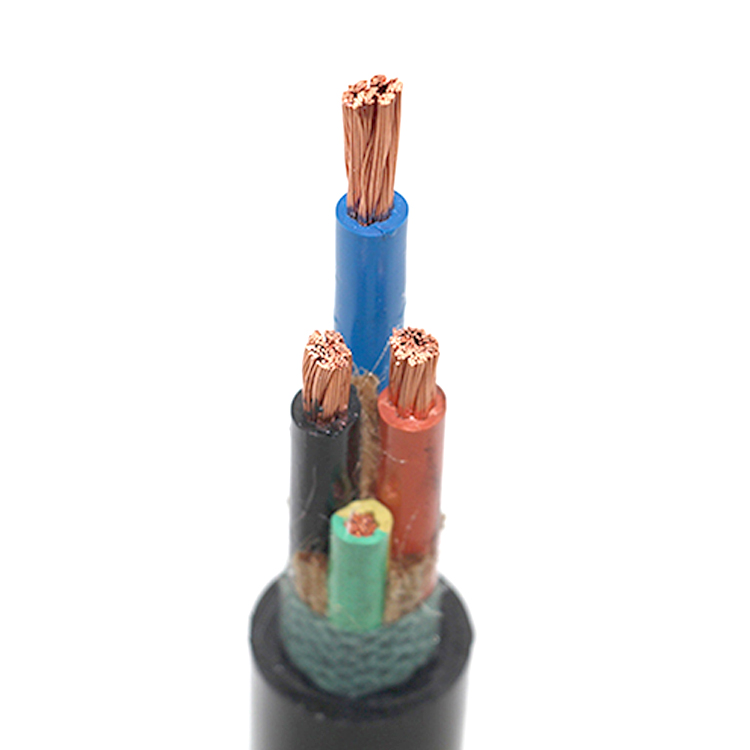

01.Conductor- Flexible annealed stranded soft copper,Class 5
02.Insulation- Premium grade color coded Silicone Rubber Insulation
03.Filler- Filler rope(For multi-core)
04.Bind- Tape(For multi-core)
05.Jacket- Overall jacket of Silicone Rubber compound , Optional is oil, solvents, ozone, weather, sunlight, and water resistant.
Table 1 GGR 0.6/1kV
| Size
mm2 |
Nominal thickness of insulation
mm |
Nominal thickness of sheath
mm |
Approx. cable diameter
mm |
Approx. cable weight
kg/km |
| 2×0.75 | 0.8 | 1.8 | 9.9 | 129.2 |
| 2×1 | 0.8 | 1.8 | 10.3 | 140.8 |
| 2×1.5 | 1.0 | 1.8 | 11.7 | 185.5 |
| 2×2.5 | 1.0 | 1.8 | 12.6 | 224.0 |
| 2×4 | 1.0 | 1.8 | 13.7 | 280.3 |
| 2×6 | 1.0 | 1.8 | 14.9 | 348.4 |
| 2×10 | 1.0 | 1.8 | 17.5 | 497.7 |
| 2×16 | 1.0 | 1.8 | 19.5 | 670.1 |
| 2×25 | 1.2 | 1.8 | 23.4 | 983.9 |
| 2×35 | 1.2 | 1.8 | 26.4 | 1289.0 |
| 2×50 | 1.4 | 1.9 | 30.7 | 1783.7 |
| 2×70 | 1.4 | 2.1 | 34.1 | 2327.1 |
| 2×95 | 1.6 | 2.2 | 39.1 | 3099.1 |
| 2×120 | 1.6 | 2.3 | 42.1 | 3745.9 |
| 2×150 | 1.8 | 2.5 | 46.4 | 4624.7 |
| 2×185 | 2.0 | 2.6 | 51.4 | 5679.4 |
| 2×240 | 2.2 | 2.8 | 57.9 | 7273.2 |
| 3×0.75 | 0.8 | 1.8 | 10.4 | 144.5 |
| 3×1 | 0.8 | 1.8 | 10.8 | 158.8 |
| 3×1.5 | 1.0 | 1.8 | 12.3 | 211.3 |
| 3×2.5 | 1.0 | 1.8 | 13.2 | 259.7 |
| 3×4 | 1.0 | 1.8 | 14.5 | 330.6 |
| 3×6 | 1.0 | 1.8 | 15.7 | 418.0 |
| 3×10 | 1.0 | 1.8 | 18.6 | 603.2 |
| 3×16 | 1.0 | 1.8 | 20.7 | 829.1 |
| 3×25 | 1.2 | 1.8 | 24.9 | 1226.6 |
| 3×35 | 1.2 | 1.9 | 28.2 | 1627.0 |
| 3×50 | 1.4 | 2.0 | 32.9 | 2262.7 |
| 3×70 | 1.4 | 2.1 | 36.6 | 2982.4 |
| 3×95 | 1.6 | 2.3 | 41.9 | 3982.8 |
| 3×120 | 1.6 | 2.4 | 45.2 | 4848.8 |
| 3×150 | 1.8 | 2.6 | 49.8 | 6002.1 |
| 3×185 | 2.0 | 2.7 | 55.2 | 7375.9 |
| 3×240 | 2.2 | 3.0 | 62.1 | 9462.4 |
| 4×0.75 | 0.8 | 1.8 | 11.2 | 169.0 |
| 4×1 | 0.8 | 1.8 | 11.6 | 186.8 |
| 4×1.5 | 1.0 | 1.8 | 13.4 | 251.5 |
| 4×2.5 | 1.0 | 1.8 | 14.4 | 313.0 |
| 4×4 | 1.0 | 1.8 | 15.7 | 402.5 |
| 4×6 | 1.0 | 1.8 | 17.1 | 513.8 |
| 4×10 | 1.0 | 1.8 | 20.4 | 747.9 |
| 4×16 | 1.0 | 1.8 | 22.8 | 1038.1 |
| 4×25 | 1.2 | 1.8 | 27.7 | 1561.7 |
| 4×35 | 1.2 | 2.0 | 31.3 | 2070.5 |
| 4×50 | 1.4 | 2.1 | 36.6 | 2887.4 |
| 4×70 | 1.4 | 2.3 | 40.7 | 3818.6 |
| 4×95 | 1.6 | 2.5 | 46.7 | 5108.8 |
| 4×120 | 1.6 | 2.6 | 50.3 | 6233.1 |
| 4×150 | 1.8 | 2.8 | 55.5 | 7725.2 |
| 4×185 | 2.0 | 2.9 | 61.5 | 9497.8 |
| 4×240 | 2.2 | 3.2 | 69.3 | 12196.6 |
| 5×0.75 | 0.8 | 1.8 | 12.1 | 197.9 |
| 5×1 | 0.8 | 1.8 | 12.5 | 219.4 |
| 5×1.5 | 1.0 | 1.8 | 14.5 | 298.2 |
| 5×2.5 | 1.0 | 1.8 | 15.6 | 373.5 |
| 5×4 | 1.0 | 1.8 | 17.2 | 484.0 |
| 5×6 | 1.0 | 1.8 | 18.7 | 621.7 |
| 5×10 | 1.0 | 1.8 | 22.3 | 910.5 |
| 5×16 | 1.0 | 1.8 | 25.0 | 1270.0 |
| 5×25 | 1.2 | 1.9 | 30.7 | 1931.5 |
| 5×35 | 1.2 | 2.1 | 34.8 | 2564.9 |
| 5×50 | 1.4 | 2.3 | 40.6 | 3582.5 |
| 5×70 | 1.4 | 2.4 | 45.2 | 4744.2 |
| 5×95 | 1.6 | 2.6 | 51.9 | 6352.5 |
| 5×120 | 1.6 | 2.8 | 56.0 | 7755.4 |
| 5×150 | 1.8 | 3.0 | 61.8 | 9615.9 |
| 5×185 | 2.0 | 3.2 | 68.5 | 11828.9 |
| 5×240 | 2.2 | 3.5 | 77.2 | 15196.7 |
