Three Core MV STA Copper Cable
  1. Thumbnail
  2. Thumbnail

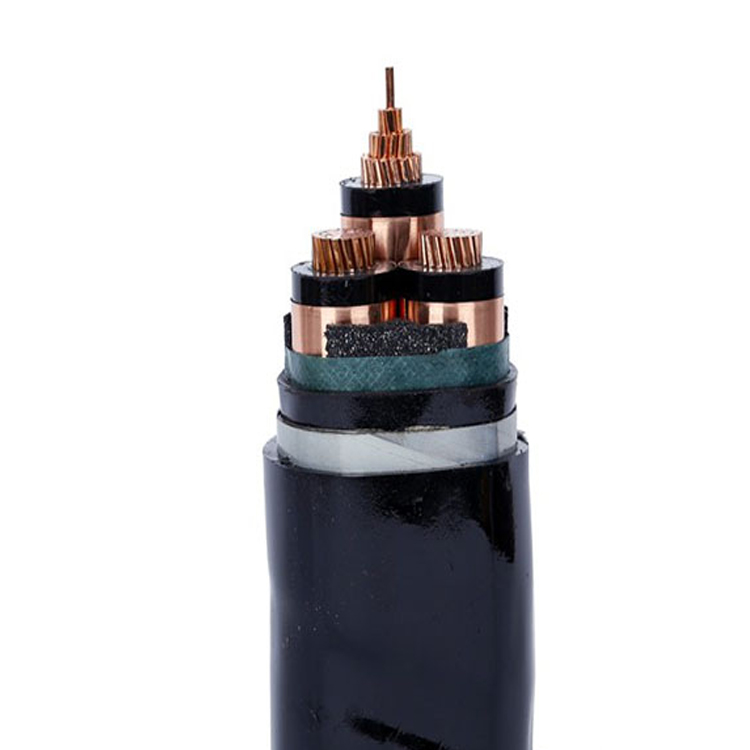

Three Core MV STA Copper Cable

Three Core MV STA Copper Cable
Voltage: 3.6kV-35kV
Structure: Conductor Copper
Insulation XLPE
Armour STA
Jacket PVC

Send Inquiry Live Chat
  • Product Details
Rated Voltage No. of CORES CORSS SECTIONAL(MM2) CONDUCTOR CORE DIAMETER (MM) CONDUCTOR SHIELD THICKNESS(MM) INSULATION THICKNESS(MM) NON METAL SHIELD SPEC. (MM) METAL SHIELD SPEC. (MM) BELT (MM) INNER SHEATH THICKNESS(MM) ARMOURED SPEC. (MM) JACKET THICKNESS (MM) OVERALL DIAMETER (MM) WEIGHT (KG/KM)
3.6/6KV 3 25 7/2.18 6 0.8 2.5 0.7 30×0.10 60×0.20 1.2 35×0.5 2.2 40.2 2501.5
3 3×35 7/2.58 7 0.8 2.5 0.7 30×0.10 60×0.20 1.3 40×0.5 2.3 42.8 2948.9
3 3×50 10/2.58 8.4 0.8 2.5 0.7 30×0.10 60×0.20 1.3 45×0.5 2.4 46 3540.7
3 3×70 19/2.18 10 0.8 2.5 0.7 30×0.10 60×0.20 1.4 45×0.5 2.5 49.8 4340
3 3×95 19/2.58 11.6 0.8 2.5 0.7 40×0.10 60×0.20 1.4 50×0.5 2.6 53.5 5305.7
3 3×120 24/2.58 13 0.8 2.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 57.1 6261.2
3 3×150 30/2.58 14.6 0.8 2.5 0.7 40×0.10 60×0.20 1.6 60×0.5 2.9 60.9 7364.4
3 3×185 37/2.58 16.2 0.8 2.5 0.7 40×0.10 60×0.20 1.6 60×0.5 3 64.6 8581.2
3 3×240 48/2.58 18.5 0.8 2.6 0.7 40×0.10 60×0.20 1.7 60×0.5 3.2 70.6 10567.3
3 3×300 60/2.58 20.6 0.8 2.8 0.7 40×0.10 60×0.20 1.8 60×0.5 3.4 76.5 12727.7
3 3×400 61/2.94 23.8 0.8 3 0.7 40×0.10 60×0.20 2 60×0.8 3.7 86.5 16926.8
6/6KV 3 3×25 7/2.18 6 0.8 3.4 0.7 30×0.10 60×0.20 1.3 40×0.5 2.4 44.7 2874.3
3 3×35 7/2.58 7 0.8 3.4 0.7 30×0.10 60×0.20 1.3 45×0.5 2.4 46.8 3290.8
3 3×50 10/2.58 8.4 0.8 3.4 0.7 30×0.10 60×0.20 1.4 45×0.5 2.6 50.4 3949
3 3×70 19/2.18 10 0.8 3.4 0.7 40×0.10 60×0.20 1.5 50×0.5 2.7 54.3 4777.7
3 3×95 19/2.58 11.6 0.8 3.4 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 57.9 5763.8
3 3×120 24/2.58 13 0.8 3.4 0.7 40×0.10 60×0.20 1.6 60×0.5 2.9 61.4 6720.3
3 3×150 30/2.58 14.6 0.8 3.4 0.7 40×0.10 60×0.20 1.6 60×0.5 3 65 7815.6
3 3×185 37/2.58 16.2 0.8 3.4 0.7 40×0.10 60×0.20 1.7 60×0.5 3.1 68.9 9086.8
3 3×240 48/2.58 18.5 0.8 3.4 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 74.4 11054
3 3×300 60/2.58 20.6 0.8 3.4 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 79.5 13136.9
3 3×400 61/2.94 23.8 0.8 3.4 0.7 40×0.10 60×0.20 2 60×0.8 3.7 88.2 17185.7
6/10KV 3 3×25 7/2.18 6 0.8 3.4 0.7 30×0.10 60×0.20 1.3 40×0.5 2.4 44.7 2874.3
3 3×35 7/2.58 7 0.8 3.4 0.7 30×0.10 60×0.20 1.3 45×0.5 2.4 46.8 3290.8
3 3×50 10/2.58 8.4 0.8 3.4 0.7 30×0.10 60×0.20 1.4 45×0.5 2.6 50.4 3949
3 3×70 19/2.18 10 0.8 3.4 0.7 40×0.10 60×0.20 1.5 50×0.5 2.7 54.3 4777.7
3 3×95 19/2.58 11.6 0.8 3.4 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 57.9 5763.8
3 3×120 24/2.58 13 0.8 3.4 0.7 40×0.10 60×0.20 1.6 60×0.5 2.9 61.4 6720.3
3 3×150 30/2.58 14.6 0.8 3.4 0.7 40×0.10 60×0.20 1.6 60×0.5 3 65 7815.6
3 3×185 37/2.58 16.2 0.8 3.4 0.7 40×0.10 60×0.20 1.7 60×0.5 3.1 68.9 9086.8
3 3×240 48/2.58 18.5 0.8 3.4 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 74.4 11054
3 3×300 60/2.58 20.6 0.8 3.4 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 79.5 13136.9
3 3×400 61/2.94 23.8 0.8 3.4 0.7 40×0.10 60×0.20 2 60×0.8 3.7 88.2 17185.7
8.7/10KV 3 3×25 7/2.18 6 0.8 4.5 0.7 30×0.10 60×0.20 1.4 45×0.5 2.5 49.8 3330.9
3 3×35 7/2.58 7 0.8 4.5 0.7 40×0.10 60×0.20 1.4 50×0.5 2.6 52.2 3789.7
3 3×50 10/2.58 8.4 0.8 4.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.7 55.6 4452.4
3 3×70 19/2.18 10 0.8 4.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 59.2 5276.9
3 3×95 19/2.58 11.6 0.8 4.5 0.7 40×0.10 60×0.20 1.6 60×0.5 3 63.3 6351.4
3 3×120 24/2.58 13 0.8 4.5 0.7 40×0.10 60×0.20 1.7 60×0.5 3.1 66.7 7331.5
3 3×150 30/2.58 14.6 0.8 4.5 0.7 40×0.10 60×0.20 1.7 60×0.5 3.2 70.3 8454.9
3 3×185 37/2.58 16.2 0.8 4.5 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 74.2 9756.8
3 3×240 48/2.58 18.5 0.8 4.5 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 79.7 11768.1
3 3×300 60/2.58 20.6 0.8 4.5 0.7 40×0.10 60×0.20 2 60×0.8 3.7 86.1 14708.5
3 3×400 61/2.94 23.8 0.8 4.5 0.7 40×0.10 60×0.20 2.1 60×0.8 3.9 93.6 18055.8
8.7/15KV 3 3×25 7/2.18 6 0.8 4.5 0.7 30×0.10 60×0.20 1.4 45×0.5 2.5 49.8 3330.9
3 3×35 7/2.58 7 0.8 4.5 0.7 40×0.10 60×0.20 1.4 50×0.5 2.6 52.2 3789.7
3 3×50 10/2.58 8.4 0.8 4.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.7 55.6 4452.4
3 3×70 19/2.18 10 0.8 4.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 59.2 5276.9
3 3×95 19/2.58 11.6 0.8 4.5 0.7 40×0.10 60×0.20 1.6 60×0.5 3 63.3 6351.4
3 3×120 24/2.58 13 0.8 4.5 0.7 40×0.10 60×0.20 1.7 60×0.5 3.1 66.7 7331.5
3 3×150 30/2.58 14.6 0.8 4.5 0.7 40×0.10 60×0.20 1.7 60×0.5 3.2 70.3 8454.9
3 3×185 37/2.58 16.2 0.8 4.5 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 74.2 9756.8
3 3×240 48/2.58 18.5 0.8 4.5 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 79.7 11768.1
3 3×300 60/2.58 20.6 0.8 4.5 0.7 40×0.10 60×0.20 2 60×0.8 3.7 86.1 14708.5
3 3×400 61/2.94 23.8 0.8 4.5 0.7 40×0.10 60×0.20 2.1 60×0.8 3.9 93.6 18055.8
12/20KV 3 3×35 7/2.58 7 0.8 5.5 0.7 40×0.10 60×0.20 1.5 55×0.5 2.8 57.1 4285.4
3 3×50 10/2.58 8.4 0.8 5.5 0.7 40×0.10 60×0.20 1.6 60×0.5 2.9 60.5 4973.4
3 3×70 19/2.18 10 0.8 5.5 0.7 40×0.10 60×0.20 1.6 60×0.5 3 64.1 5823.8
3 3×95 19/2.58 11.6 0.8 5.5 0.7 40×0.10 60×0.20 1.7 60×0.5 3.1 68 6897.9
3 3×120 24/2.58 13 0.8 5.5 0.7 40×0.10 60×0.20 1.8 60×0.5 3.2 71.4 7901.8
3 3×150 30/2.58 14.6 0.8 5.5 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 75.1 9053.5
3 3×185 37/2.58 16.2 0.8 5.5 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 79.1 10413.9
3 3×240 48/2.58 18.5 0.8 5.5 0.7 40×0.10 60×0.20 2 60×0.8 3.7 85.9 13280.5
3 3×300 60/2.58 20.6 0.8 5.5 0.7 40×0.10 60×0.20 2.1 60×0.8 3.8 90.8 15449.8
3 3×400 61/2.94 23.8 0.8 5.5 0.7 40×0.10 60×0.20 2.2 60×0.8 4.1 98.5 18892.9
18/30KV 3 3×50 10/2.58 8.4 0.8 8 0.7 40×0.10 60×0.20 1.8 60×0.5 3.3 72.5 6386.5
3 3×70 19/2.18 10 0.8 8 0.7 40×0.10 60×0.20 1.8 60×0.5 3.4 76.1 7299.4
3 3×95 19/2.58 11.6 0.8 8 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 80 8441.8
3 3×120 24/2.58 13 0.8 8 0.7 40×0.10 60×0.20 2 60×0.8 3.7 84.8 10343.6
3 3×150 30/2.58 14.6 0.8 8 0.7 40×0.10 60×0.20 2 60×0.8 3.8 88.4 11590.4
3 3×185 37/2.58 16.2 0.8 8 0.7 40×0.10 60×0.20 2.1 60×0.8 3.9 92.3 13027
3 3×240 48/2.58 18.5 0.8 8 0.7 40×0.10 60×0.20 2.2 60×0.8 4.1 97.8 15230.4
3 3×300 60/2.58 20.6 0.8 8 0.7 40×0.10 60×0.20 2.3 60×0.8 4.2 102.7 17485.5
3 3×400 61/2.94 23.8 0.8 8 0.7 40×0.10 60×0.20 2.4 60×0.8 4.5 110.4 21064.6
21/35KV 3 3×50 10/2.58 8.4 0.8 9.3 0.7 40×0.10 60×0.20 1.9 60×0.5 3.5 78.7 7199.8
3 3×70 19/2.18 10 0.8 9.3 0.7 40×0.10 60×0.20 2 60×0.8 3.6 83.7 8974.4
3 3×95 19/2.58 11.6 0.8 9.3 0.7 40×0.10 60×0.20 2 60×0.8 3.8 87.6 10187.9
3 3×120 24/2.58 13 0.8 9.3 0.7 40×0.10 60×0.20 2.1 60×0.8 3.9 91 11318.7
3 3×150 30/2.58 14.6 0.8 9.3 0.7 40×0.10 60×0.20 2.2 60×0.8 4 94.8 12644.9
3 3×185 37/2.58 16.2 0.8 9.3 0.7 40×0.10 60×0.20 2.2 60×0.8 4.1 98.5 14069.7
3 3×240 48/2.58 18.5 0.8 9.3 0.7 40×0.10 60×0.20 2.3 60×0.8 4.3 104 16323.9
3 3×300 60/2.58 20.6 0.8 9.3 0.7 40×0.10 60×0.20 2.4 60×0.8 4.4 108.9 18623.5
3 3×400 61/2.94 23.8 0.8 9.3 0.7 40×0.10 60×0.20 2.5 60×0.8 4.7 116.6 22273
26/35KV 3 3×50 10/2.58 8.4 0.8 10.5 0.7 40×0.10 60×0.20 2 60×0.8 3.7 85.6 8813.9
3 3×70 19/2.18 10 0.8 10.5 0.7 40×0.10 60×0.20 2.1 60×0.8 3.8 89.5 9874.4
3 3×95 19/2.58 11.6 0.8 10.5 0.7 40×0.10 60×0.20 2.1 60×0.8 3.9 93.1 11072.9
3 3×120 24/2.58 13 0.8 10.5 0.7 40×0.10 60×0.20 2.2 60×0.8 4.1 96.7 12275.5
3 3×150 30/2.58 14.6 0.8 10.5 0.7 40×0.10 60×0.20 2.3 60×0.8 4.2 100.6 13640.3
3 3×185 37/2.58 16.2 0.8 10.5 0.7 40×0.10 60×0.20 2.3 60×0.8 4.3 104.2 15089.6
3 3×240 48/2.58 18.5 0.8 10.5 0.7 40×0.10 60×0.20 2.4 60×0.8 4.5 109.8 17397.2
3 3×300 60/2.58 20.6 0.8 10.5 0.7 40×0.10 60×0.20 2.5 60×0.8 4.6 114.7 19738.2
3 3×400 61/2.94 23.8 0.8 10.5 0.7 40×0.10 60×0.20 2.6 60×0.8 4.9 122.4 23453.6
