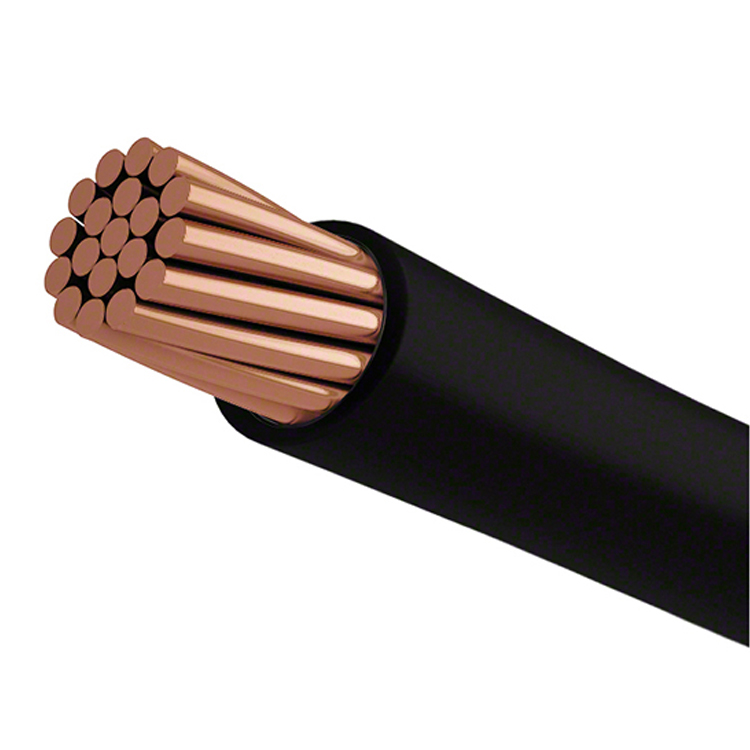

UL 44 CERTIFICATED XHHW-2 RHW-2 ELECTRICAL WIRE

1.Conductor- Annealed soft copper, solid or stranded, ASTM B8
2.Insulation- Abrasion,heat,moisture,and flame resistant cross-linked polyethylene (XLPE) insulation

UL certificated List

Item	Standard	Product Category	File Number	Model Number(s)
1	UL44	Thermoset-insulated wire	E497639	RHW, RHW-2, XHH, XHHW, XHHW-2, RHH
2	UL62	Flexible Cord	E476174	SPT-2, SPT-3, SPT-1
3	UL62 CSA C22.2 No. 49	Flexible Cord Certified for Canada	E476174	SPT-2, SPT-3, SPT-1
4	UL62 CSA C22.2 No.49	Flexible Cords and Cables	E476174	USL, CNL: Thermoset Jacketed Cord, Types SJ, S, SJO, SO, SJOO, SOO, SJOW, SOW,SJOOWand SOOW.
5	UL62 CSA C22.2 No. 49	Electric Vehicle Cable Certified for Canada	E476173	EVE, EVJE, EVJT, EVT
6	UL 758 CSA C22.2 No. 210	Appliance Wiring Material Certified for Canada – Component	E465725	AWM Class I, II or I/II, Group A, B or A/B
7	UL 758	Appliance Wiring Material – Component	E465725	1.Single-conductor, thermoplastic insulation. 2.Multiple-conductor, thermoplastic insulation. 3.Single-conductor, thermoset insulation.
8	UL 83	Thermoplastic-insulated Wire	E493062	THHN, THWN-2, THHW, THW, THW-2, TW, THWN
9	UL 83 CSA C22.2 No. 75	Thermoplastic-insulated Wire Certified for Canada	E493062	T90 Nylon, TWN75, TWU75, TW, TW75, TWU
10	UL44 UL854	Service-entrance Cable	E497640	USE, USE-2, Type SE- STYLE R (SER), Type SE- STYLE U (SEU)

Table 1 XHHW-2

Conductor		Insulation Thickness mil	Nominal O.D. mils	Approx. Weight per 1000′ (lbs.)	Allowable
Conductor					Ampacities
Size AWG or kcmil	Number of Strands				90°C
14	7	30	131	18	15
12	7	30	149	26	20
10	7	30	173	39	30
8	7	45	232	66	55
6	7	60	298	105	75
4	7	60	345	158	100
3	7	60	372	193	115
2	2	60	403	237	130
1	19	80	482	311	145
1/0	19	80	522	383	170
2/0	19	80	566	471	195
3/0	19	80	617	582	225
4/0	19	80	672	719	260
250	37	95	749	865	290
300	37	95	800	1021	320
350	37	95	851	1177	350
400	37	95	895	1337	380
500	37	95	977	1645	430
600	61	95	1086	1990	475
750	61	110	1189	2457	535
1000	61	110	1338	3232	615

Table 2 RHW-2

Conductor		Insulation Thickness mil	Nominal O.D. mils	Approx. Weight per 1000′ (lbs.)	Allowable
Conductor					Ampacities
Size AWG or kcmil	Number of Strands				90°C
14	7	45	160	18	15
12	7	45	179	26	20
10	7	45	202	39	30
8	7	60	266	66	55
6	7	60	304	105	75
4	7	60	352	158	100
3	7	60	380	193	115
2	2	60	412	237	130
1	19	80	481	311	145
1/0	19	80	520	383	170
2/0	19	80	564	471	195
3/0	19	80	614	582	225
4/0	19	80	670	719	260
250	37	95	732	865	290
300	37	95	784	1021	320
350	37	95	831	1177	350
400	37	95	875	1337	380
500	37	95	956	1645	430
600	61	110	1086	1990	475
750	61	110	1188	2457	535
1000	61	110	1337	3232	615
