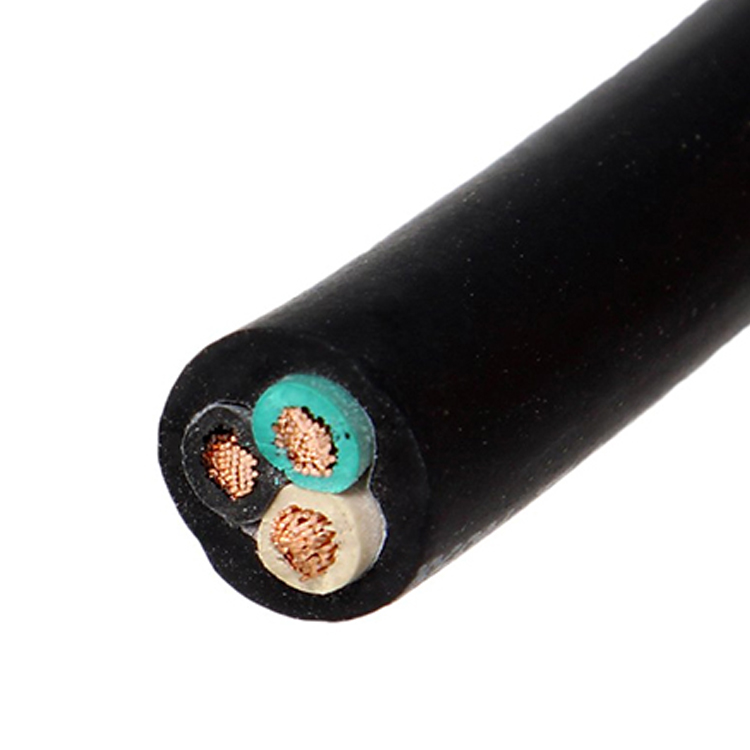

UL 62 CERTIFICATED SOOW SJOOW Electrical Wire Cable

1.Conductor- Flexible annealed stranded soft copper, ASTM B3,UL 62
2.Insulation- Premium grade color coded Ethylene Propylene Rubber (EPR) with UL 62
3.Filler- Filler roper
4.Bind Tape- Flame retardant tape
5.Jacket- Overall jacket of black Chlorinated Polyethylene (CPE), which is oil, solvents, ozone, weather, sunlight, and water resistant CPE compound with UL 62

UL certificated List

Item	Standard	Product Category	File Number	Model Number(s)
1	UL44	Thermoset-insulated wire	E497639	RHW, RHW-2, XHH, XHHW, XHHW-2, RHH
2	UL62	Flexible Cord	E476174	SPT-2, SPT-3, SPT-1
3	UL62 CSA C22.2 No. 49	Flexible Cord Certified for Canada	E476174	SPT-2, SPT-3, SPT-1
4	UL62 CSA C22.2 No.49	Flexible Cords and Cables	E476174	USL, CNL: Thermoset Jacketed Cord, Types SJ, S, SJO, SO, SJOO, SOO, SJOW, SOW,SJOOWand SOOW.
5	UL62 CSA C22.2 No. 49	Electric Vehicle Cable Certified for Canada	E476173	EVE, EVJE, EVJT, EVT
6	UL 758 CSA C22.2 No. 210	Appliance Wiring Material Certified for Canada – Component	E465725	AWM Class I, II or I/II, Group A, B or A/B
7	UL 758	Appliance Wiring Material – Component	E465725	1.Single-conductor, thermoplastic insulation. 2.Multiple-conductor, thermoplastic insulation. 3.Single-conductor, thermoset insulation.
8	UL 83	Thermoplastic-insulated Wire	E493062	THHN, THWN-2, THHW, THW, THW-2, TW, THWN
9	UL 83 CSA C22.2 No. 75	Thermoplastic-insulated Wire Certified for Canada	E493062	T90 Nylon, TWN75, TWU75, TW, TW75, TWU
10	UL44 UL854	Service-entrance Cable	E497640	USE, USE-2, Type SE- STYLE R (SER), Type SE- STYLE U (SEU)

Table 1 SJOOW 300V

Size AWG	Conductor Diameter (mm)	Insulation Thickness (mm)	Sheath Thickness （mm）	Approx. Diameter (mm)	Approx. Weight (kg/km)
2×18	1.17	0.76	0.76	7.51	67.91
2×17	1.31	0.76	0.76	7.79	74.4
2×16	1.48	0.76	0.76	8.13	81.89
2×15	1.66	0.76	0.76	8.49	91.36
2×14	1.86	0.76	0.76	8.89	102.9
2×13	2.1	0.76	0.76	9.37	117.4
2×12	2.35	0.76	1.14	10.71	159.9
2×11	2.64	0.76	1.14	11.29	182.3
2×10	2.97	1.14	1.52	14.36	273.3
3×18	1.17	0.76	0.76	7.95	87.74
3×17	1.31	0.76	0.76	8.26	96.93
3×16	1.48	0.76	0.76	8.62	107.8
3×15	1.66	0.76	0.76	9.01	123
3×14	1.86	0.76	0.76	9.44	138.7
3×13	2.1	0.76	0.76	9.96	160.3
3×12	2.35	0.76	1.14	11.34	208.6
3×11	2.64	0.76	1.14	11.97	240.5
3×10	2.97	1.14	1.52	15.22	357
4×18	1.17	0.76	0.76	8.67	109.9
4×17	1.31	0.76	0.76	9.01	121.8
4×16	1.48	0.76	0.76	9.42	136.9
4×15	1.66	0.76	0.76	9.86	154.5
4×14	1.86	0.76	0.76	10.34	175
4×13	2.1	0.76	0.76	10.92	202
4×12	2.35	0.76	1.14	12.37	260
4×11	2.64	0.76	1.14	13.07	302.7
4×10	2.97	1.14	1.52	16.61	448.4
5×18	1.17	0.76	0.76	9.45	124.4
5×17	1.31	0.76	0.76	9.83	139.1
5×16	1.48	0.76	0.76	10.29	156.7
5×15	1.66	0.76	0.76	10.77	187.8
5×14	1.86	0.76	0.76	11.31	211.7
5×13	2.1	0.76	0.76	11.96	245.5
5×12	2.35	0.76	1.14	13.48	312.4
5×11	2.64	0.76	1.14	14.26	363.8
5×10	2.97	1.14	1.52	18.11	538.1
6×18	1.17	0.76	0.76	10.28	143.6
6×17	1.31	0.76	0.76	10.7	161.8
6×16	1.48	0.76	0.76	11.21	182
6×15	1.66	0.76	0.76	11.75	210.4
6×14	1.86	0.76	0.76	12.35	240.1
6×13	2.1	0.76	0.76	13.07	279.6
6×12	2.35	0.76	1.14	14.66	366.4
6×11	2.64	0.76	1.14	15.53	427.5
6×10	2.97	1.14	1.52	19.72	630.1

Table 2 SOOW 600V

Size AWG	Phase Conductor Diameter (mm)	Phase Insulation Thickness (mm)	Sheath Thickness （mm）	Approx. Diameter (mm)	Approx. Weight (kg/km)
2×18	1.17	0.76	1.52	9.32	105.7
2×17	1.31	0.76	1.52	9.6	113.4
2×16	1.48	0.76	1.52	9.94	122.4
2×15	1.66	0.76	2.03	11.43	165.3
2×14	1.86	1.14	2.03	13.51	219.6
2×13	2.1	1.14	2.03	13.99	238.6
2×12	2.35	1.14	2.41	15.32	292.8
2×11	2.64	1.14	2.41	15.9	320.7
2×10	2.97	1.14	2.41	16.56	355.2
2×9	3.57	1.14	2.41	17.76	405.5
2×8	3.99	1.52	2.79	21.1	554.9
2×7	4.46	1.52	3.17	22.87	665.7
2×6	5.03	1.52	3.17	24.01	749.3
2×5	5.65	1.52	3.56	26.11	905.4
2×4	6.4	1.52	3.56	27.61	1031
2×3	7.2	1.52	3.94	30.35	1267
2×2	8.1	1.52	3.94	32.15	1452
3×18	1.17	0.76	1.52	9.77	127.5
3×17	1.31	0.76	1.52	10.08	138.1
3×16	1.48	0.76	1.52	10.44	150.5
3×15	1.66	0.76	2.03	12.96	199.1
3×14	1.86	1.14	2.03	14.21	267.1
3×13	2.1	1.14	2.03	14.73	293.3
3×12	2.35	1.14	2.41	16.1	357.5
3×11	2.64	1.14	2.41	16.72	395.7
3×10	2.97	1.14	2.41	17.44	443.7
3×9	3.57	1.14	2.41	18.73	516.3
3×8	3.99	1.52	2.79	22.27	699.2
3×7	4.46	1.52	3.17	24.12	837.2
3×6	5.03	1.52	3.17	25.35	953.6
3×5	5.65	1.52	3.56	27.55	1150
3×4	6.4	1.52	3.56	29.47	1348
3×3	7.2	1.52	3.94	32.04	1635
3×2	8.1	1.52	3.94	33.98	1894
4×18	1.17	0.76	1.52	10.51	153
4×17	1.31	0.76	1.52	10.85	166.4
4×16	1.48	0.76	1.52	11.26	183.3
4×15	1.66	0.76	2.03	13.83	238.8
4×14	1.86	1.14	2.03	15.35	321.4
4×13	2.1	1.14	2.03	15.93	356.4
4×12	2.35	1.14	2.41	17.36	431.9
4×11	2.64	1.14	2.41	18.06	480.9
4×10	2.97	1.14	2.41	18.86	542.6
4×9	3.57	1.14	2.41	20.31	629.6
4×8	3.99	1.52	3.17	25.01	907.4
4×7	4.46	1.52	3.17	26.15	1029
4×6	5.03	1.52	3.56	28.69	1258
4×5	5.65	1.52	3.56	30.19	1438
4×4	6.4	1.52	3.94	32.84	1736
4×3	7.2	1.52	3.94	34.78	2023
4×2	8.1	1.52	4.32	37.78	2439
5×18	1.17	0.76	2.03	12.44	204.4
5×17	1.31	0.76	2.03	12.82	223.4
5×16	1.48	0.76	2.03	13.28	253.8
5×15	1.66	0.76	2.41	15.79	309.9
5×14	1.86	1.14	2.41	17.4	415.2
5×13	2.1	1.14	2.41	18.05	457.5
5×12	2.35	1.14	2.41	18.72	505.9
5×11	2.64	1.14	2.41	19.51	568.3
5×10	2.97	1.14	2.41	20.4	643.8
5×9	3.57	1.14	2.41	22.02	737.9
5×8	3.99	1.52	3.17	27.06	1058
5×7	4.46	1.52	3.17	28.63	1210
5×6	5.03	1.52	3.56	31.03	1460
5×5	5.65	1.52	3.56	32.7	1677
5×4	6.4	1.52	3.94	35.57	2034
5×3	7.2	1.52	3.94	37.73	2378
5×2	8.1	1.52	4.32	40.99	2869
6×18	1.17	0.76	2.03	13.29	232.2
6×17	1.31	0.76	2.03	13.71	252.8
6×16	1.48	0.76	2.03	14.22	277.4
6×15	1.66	0.76	2.41	15.59	340.1
6×14	1.86	1.14	2.41	18.71	474.4
6×13	2.1	1.14	2.41	19.43	526.3
6×12	2.35	1.14	2.41	20.18	581.2
6×11	2.64	1.14	2.41	21.05	652.4
6×10	2.97	1.14	2.41	22.04	741.2
6×9	3.57	1.14	2.41	23.84	856
6×8	3.99	1.52	3.56	30.42	1306
6×7	4.46	1.52	3.56	31.83	1472
6×6	5.03	1.52	3.94	34.38	1765
6×5	5.65	1.52	3.94	36.24	2025
6×4	6.4	1.52	3.94	38.49	2354
6×3	7.2	1.52	4.32	41.72	2853
6×2	8.1	1.52	4.32	44.42	3344
