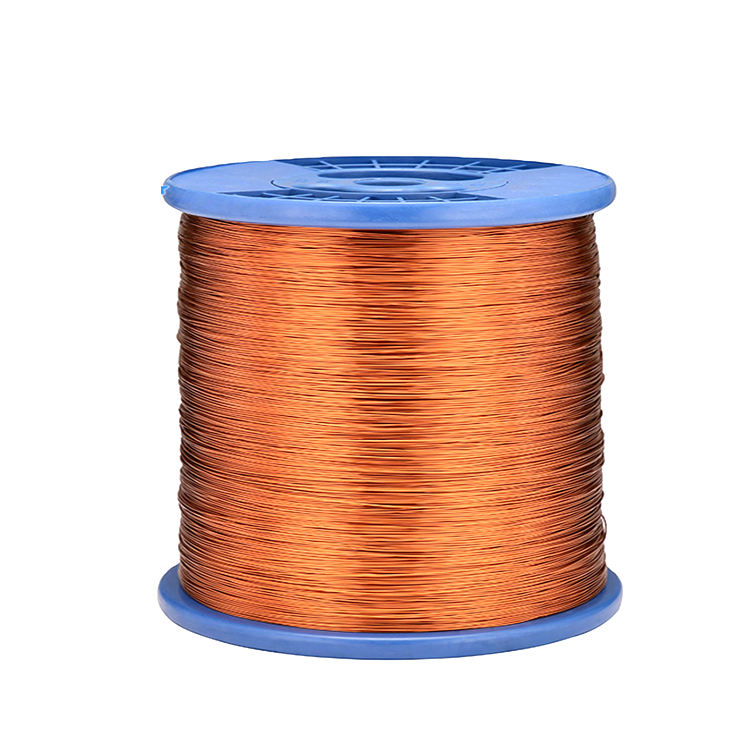

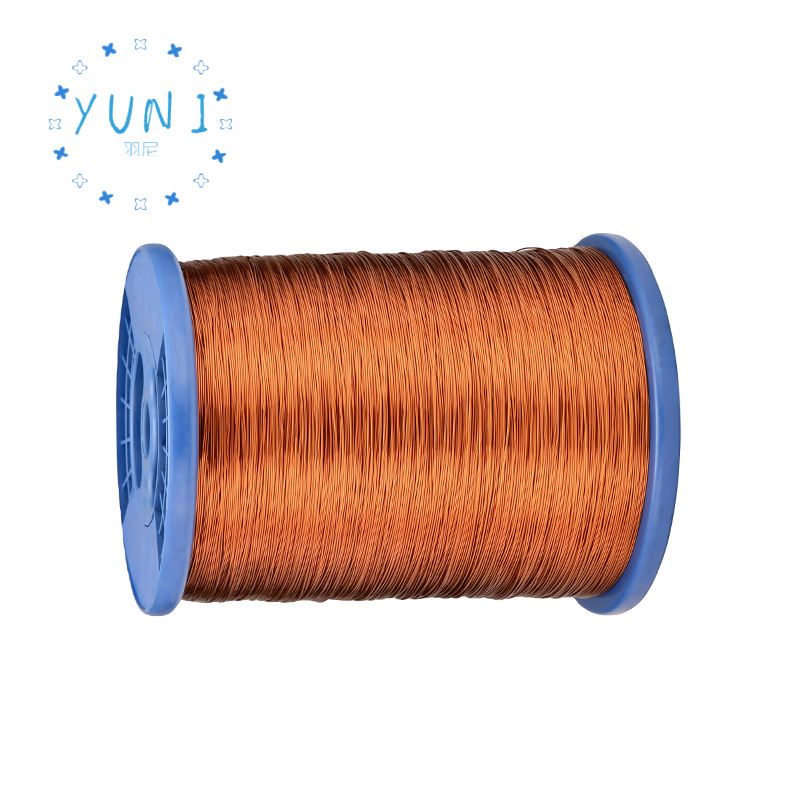

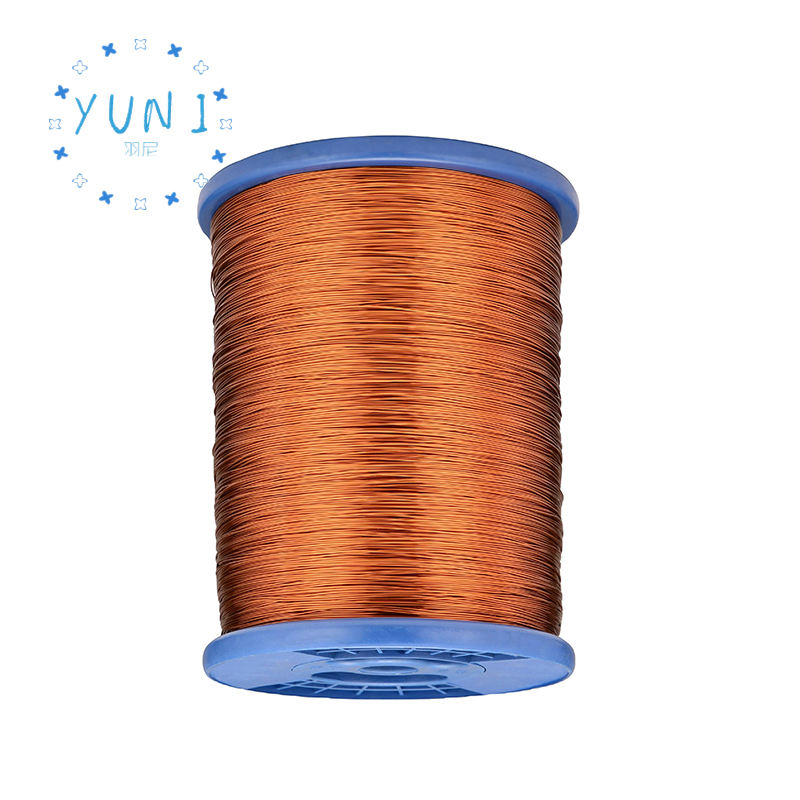

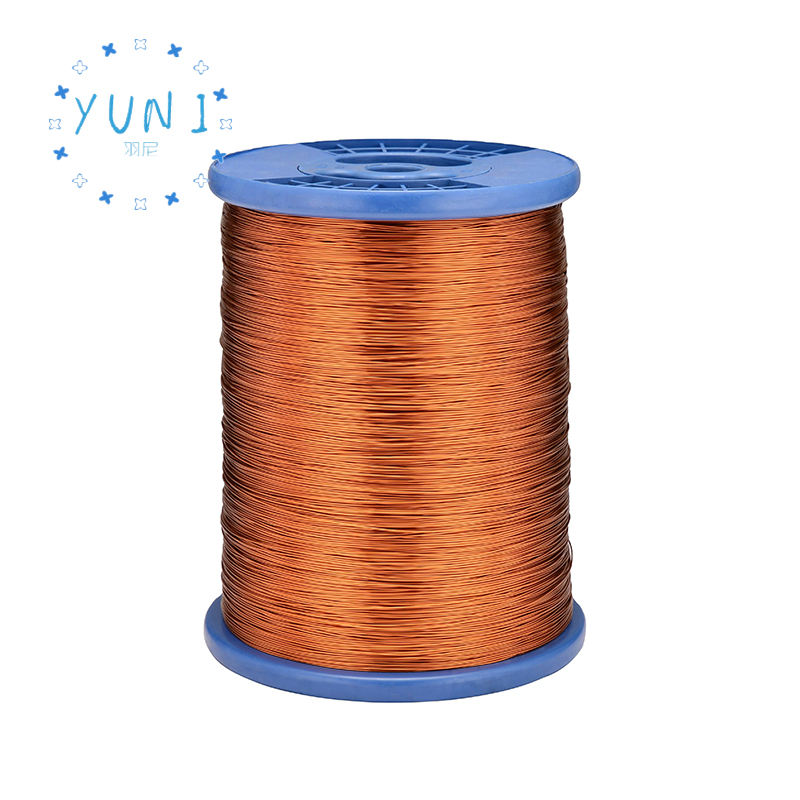

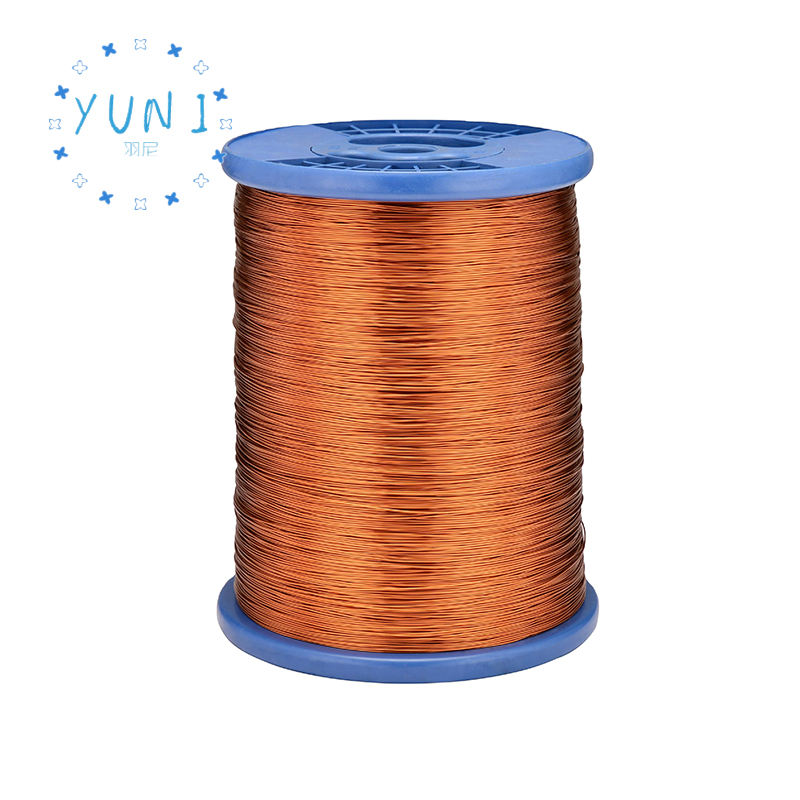

YUNI enameled aluminum wire

Product name	Enamelled aluminum wire, round aluminum winding wire, magnet aluminum wire
Application	Transformer, Motor, Pump, Generator, Reactor, Inductor, Choke, Welding machine, etc
Conductor	Round 99.9% pure aluminum rod
Sizes	0.20-5.00mm, AWG 5-32, Swg6~Swg39
Elongation	≥15%
Tensile strength	130Mpa~150Mpa
Thermal class	130C~220C
Standard	IEC 60317, NEMA MW, GB JIS
Insulation material	PEW UEW EIW EI/AIW AIW
Color	Golden, Brown, Black (according to the wire diameter)

Type	Polyester	Modified Polyester	Polyurethane	Polyesterimide	Polyamide-imide	Polyamide
Code	PEW, QZ	PEW, QZ	UEW, QA	EIW, QZY	EI/AIW, QZY/XY	AIW, QXY
Thermal Class	Class B, 130℃	Class F, 155℃	Class F, 155℃	Class H, 180℃	Class H, 200℃	Class L, 220℃
Insulation thickness	Grade 1, 2, 3
Standard	IEC 60317, NEMA MW, JIS
Characteristics	Good heat resistance and mechanical strength. Low cost.	High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance	Solderability(no need to remove the insulation). High frequency resistance and dyeability	Good thermal shock resistance and refrigerant resistance. Excellent chemical resistance, abrasion resistance	More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance	Highest heat class High heat resistance, good solvent and refrigerant resistance
